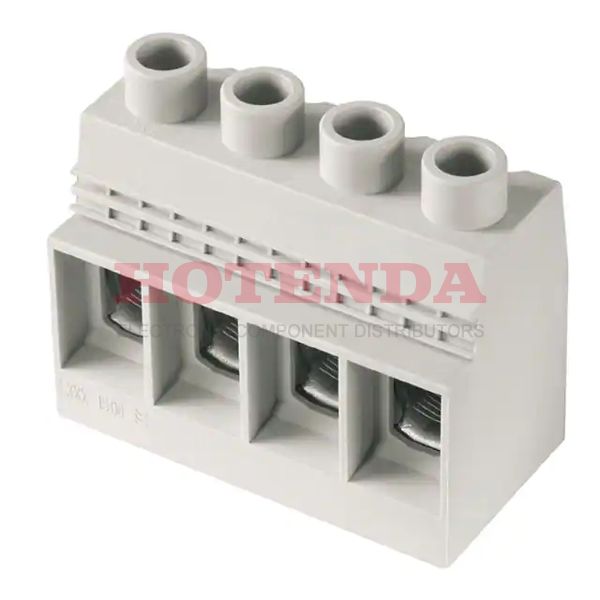

1047230000

  • 1047230000 - 0.591 15.00mm Gray Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 1-20 AWG Omnimate LXXX
  • 1047230000 - 0.591 15.00mm Gray Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 1-20 AWG Omnimate LXXX

1047230000

1047230000

Weidmüller

0.591 15.00mm Gray Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 1-20 AWG Omnimate LXXX

SOT-23

1047230000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Thermoplastic, Wemid
Contact Material - Plating Copper Alloy - Tin Plated
Operating Temperature-50°C~120°C
PackagingBulk
Series Omnimate LXXX
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Color Gray
Voltage - Rated 600V
Pitch 0.591 15.00mm
Current Rating127A
Approval Agency CSA, UR
Housing Color Grey
Wire Gauge1-20 AWG
Number of Levels 1
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 1 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 2.4-4 Nm (21.2-35.4 Lb-In)
Positions Per Level 4
Mating Orientation Horizontal with Board
Wire TerminationScrew - Clamping Yoke, Tension Sleeve
Screw Thread M6
Hole Diameter 1.6 mm
Number of Positions Per Level 4
Stripping Length 18mm
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:436 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$18.540000$18.54
10$17.490566$174.90566
100$16.500534$1650.0534
500$15.566542$7783.271
1000$14.685417$14685.417

1047230000 Product Details

1047230000 Overview


The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LXXX Series of products.The part is mounted by Through Hole.The device runs in -50°C~120°C Operating Temperature.

1047230000 Features


Omnimate LXXX series


1047230000 Applications


There are a lot of Weidmüller
1047230000 Terminal Blocks applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
