Name: 1723027
Brand: Phoenix Contact
SKU: 1723027
Price: 11.22000 USD
Availability: InStock

new

1723027

Manufacturer part number:1723027

Manufacturer:Phoenix Contact

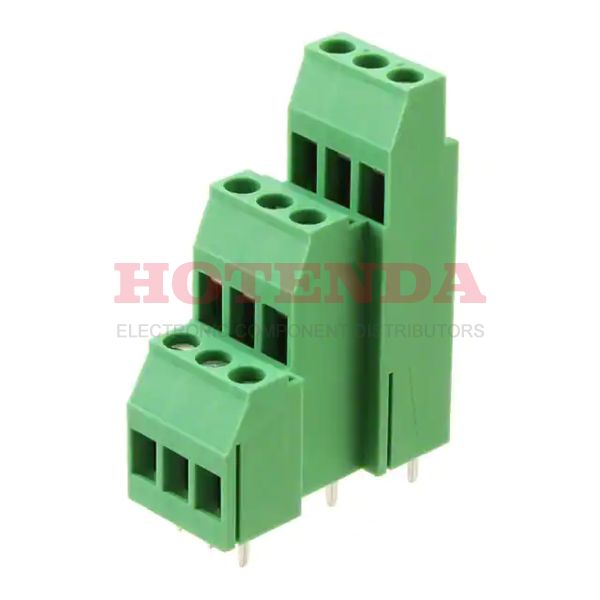

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 12-30 AWG COMBICON MK3DS

Case Package:SOT-23

Datasheet:1723027 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	9
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Series	COMBICON MK3DS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	400V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	33.6mm
Current Rating	17.5A
Approval Agency	CB, CSA, UL
Wire Gauge	12-30 AWG
Voltage	300V
Number of Circuits	1
Max Supply Voltage	250V
Max Current Rating	24A
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	26 AWG
Number of Poles	3
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	2.5 mm2
Height	33.6mm
Length	17.78mm
Width	49.8mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1723027 Product Details

1723027 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MK3DS Series.There are 9 pins on the device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.This part has 1 circuits.There should be no voltage above 0 on the supply line for this chip.
