Name: 1595740000
Brand: Weidmüller
SKU: 1595740000
Price: 2.14000 USD
Availability: InStock

new-10%

1595740000

Manufacturer part number:1595740000

Manufacturer:Weidmüller

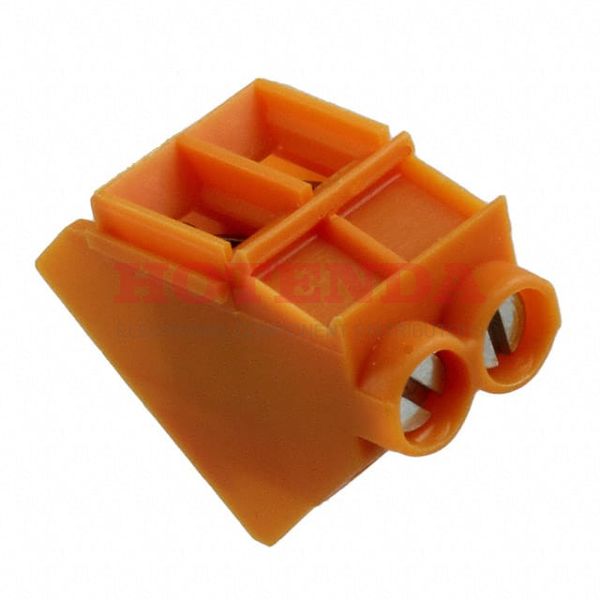

Description:0.200 5.08mm Orange Bulk Polyamide (PA66), Nylon 6/6 Through Hole 45° (135°) Angle with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 12-26 AWG Omnimate LP

Case Package:SOT-23

Datasheet:1595740000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-20°C~100°C
Packaging	Bulk
Series	Omnimate LP
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Orange
Number of Rows	1
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Depth	17.51mm
Number of Contacts	2
Wire Gauge	12-26 AWG
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; VDE; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M3
Width	17.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1595740000 Product Details

1595740000 Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Omnimate LP Series.By Through Hole, the part is mounted.Operating temperature is set to -20°C~100°C.A supply voltage of 300V should not be exceeded by this chip.
