ECW-F6184HL

  • ECW-F6184HL - ECW-F6184HL datasheet pdf and Film Capacitors product details from Panasonic Electronic Components stock available on our website
  • ECW-F6184HL - ECW-F6184HL datasheet pdf and Film Capacitors product details from Panasonic Electronic Components stock available on our website

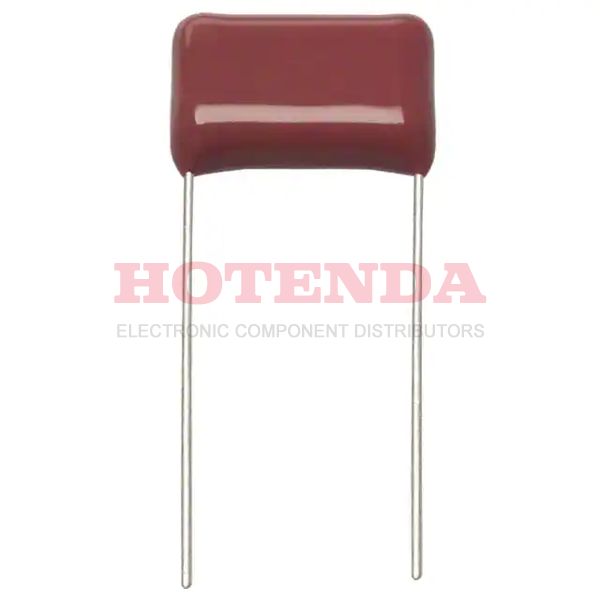

ECW-F6184HL

ECW-F6184HL

Panasonic Electronic Components

ECW-F6184HL datasheet pdf and Film Capacitors product details from Panasonic Electronic Components stock available on our website

SOT-23

ECW-F6184HL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 0.709Lx0.386W 18.00mmx9.80mm
Tolerance ±3%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.18μF
Voltage - Rated DC 630V
Packing Method AMMO PACK
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Size Code 7139
Height 14.2mm
Height Seated (Max) 0.618 15.70mm
Width 9.8mm
RoHS StatusROHS3 Compliant
In-Stock:2889 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.92000$1.92
10$1.57000$15.7
100$1.22680$122.68
500$0.96242$481.21

ECW-F6184HL Product Details

ECW-F6184HL Overview


0.591 15.00mm is the lead spacing of this electrical device.A temperature of -40°C~105°C is suitable for operation of the device.

ECW-F6184HL Features



ECW-F6184HL Applications


There are a lot of Panasonic Electronic Components ECW-F6184HL applications of film capacitors.

  • VCO's
  • Global positioning systems
  • Test and measuring equipment
  • IGBT
  • Audio/video equipment
  • Satellite TV
  • Battery management system
  • RFI for automotive
  • Filtering
  • Switch-mode power supplies
