ECQ-E1274KF

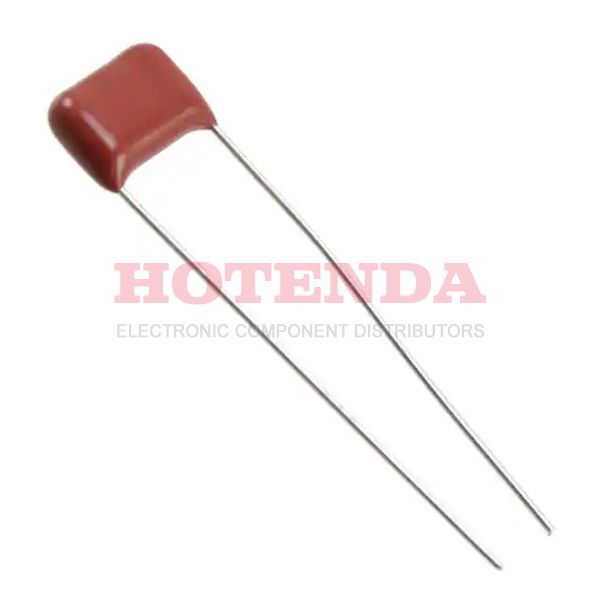

  • ECQ-E1274KF - ECQ-E(F) 0.27μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized PCB, Through Hole
  • ECQ-E1274KF - ECQ-E(F) 0.27μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized PCB, Through Hole

ECQ-E1274KF

ECQ-E1274KF

Panasonic Electronic Components

ECQ-E(F) 0.27μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized PCB, Through Hole

SOT-23

ECQ-E1274KF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2002
Series ECQ-E(F)
Size / Dimension 0.406Lx0.177W 10.30mmx4.50mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Max Operating Temperature105°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.27μF
Voltage - Rated DC 100V
Lead Pitch 7.493mm
Lead Length 20mm
Dielectric PET
Lead Spacing0.295 7.50mm
Lead/Base Style Straight
Height 12mm
Height Seated (Max) 0.512 13.00mm
Length 10.3124mm
Width 4.4958mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
In-Stock:15478 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.51000$0.51
10$0.32300$3.23
100$0.20830$20.83
500$0.15436$77.18

ECQ-E1274KF Product Details

ECQ-E1274KF Overview


Electrical devices have 0.295 7.50mm lead spacing.Temperatures of -40°C~105°C are suitable for operating the device.

ECQ-E1274KF Features




ECQ-E1274KF Applications


There are a lot of Panasonic Electronic Components
ECQ-E1274KF applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
