QXL2E103KTPT

  • QXL2E103KTPT - QXL 10000pF Film Capacitor ±10% Radial PC Pins 250V-AC Polyester, Metallized Radial, Through Hole
  • QXL2E103KTPT - QXL 10000pF Film Capacitor ±10% Radial PC Pins 250V-AC Polyester, Metallized Radial, Through Hole

QXL2E103KTPT

QXL2E103KTPT

Nichicon

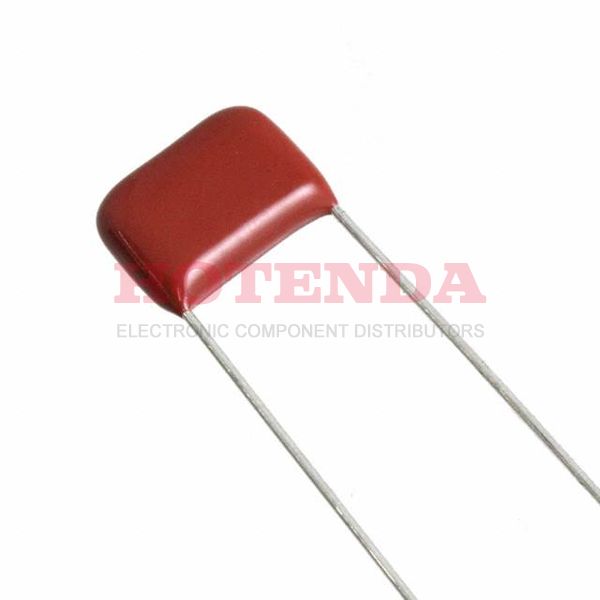

QXL 10000pF Film Capacitor ±10% Radial PC Pins 250V-AC Polyester, Metallized Radial, Through Hole

SOT-23

QXL2E103KTPT Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 18 Weeks
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2006
Series QXL
Size / Dimension 0.531Lx0.173W 13.50mmx4.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.22.00
Capacitance 10000pF
Depth 4.4mm
Voltage - Rated AC 250V
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Size Code 5317
Voltage 250V
Height 9.5mm
Height Seated (Max) 0.433 11.00mm
Length 13.5mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:9166 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.824592$0.824592
10$0.777917$7.77917
100$0.733884$73.3884
500$0.692343$346.1715
1000$0.653154$653.154

QXL2E103KTPT Product Details

QXL2E103KTPT Overview


There is 0.394 10.00mm lead spacing on this electrical device.It is capable of operating at -40°C~105°C degrees Celsius.

QXL2E103KTPT Features



QXL2E103KTPT Applications


There are a lot of Nichicon QXL2E103KTPT applications of film capacitors.

  • Filtering
  • Bypassing
  • TV and monitor sets
  • IGBT
  • Mobile communications
  • Coupling, decoupling
  • Battery management system
  • VCO's
  • RF Modules
  • Test and measuring equipment
