ECW-F6114JL

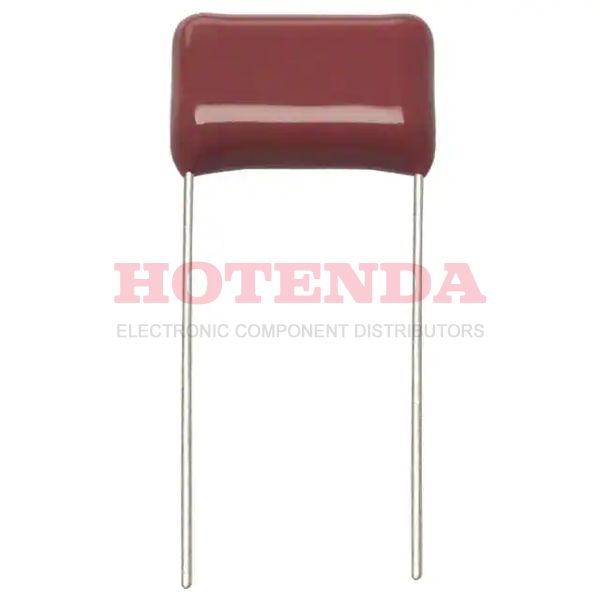

  • ECW-F6114JL - ECW-F(L) 0.11μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F6114JL - ECW-F(L) 0.11μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole

ECW-F6114JL

ECW-F6114JL

Panasonic Electronic Components

ECW-F(L) 0.11μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F6114JL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 0.709Lx0.315W 18.00mmx8.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.11μF
Voltage - Rated DC 630V
Packing Method AMMO PACK
Terminal Pitch10mm
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Size Code 7132
Height 12.4mm
Height Seated (Max) 0.547 13.90mm
Width 8mm
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:3359 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.809358$1.809358
10$1.706941$17.06941
100$1.610321$161.0321
500$1.519171$759.5855
1000$1.433180$1433.18

ECW-F6114JL Product Details

ECW-F6114JL Overview


Its lead spacing is 0.591 15.00mm.Temperatures of -40°C~105°C allow the device to operate.

ECW-F6114JL Features




ECW-F6114JL Applications


There are a lot of Panasonic Electronic Components
ECW-F6114JL applications of film capacitors.


  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
