ECQ-E2275KFB

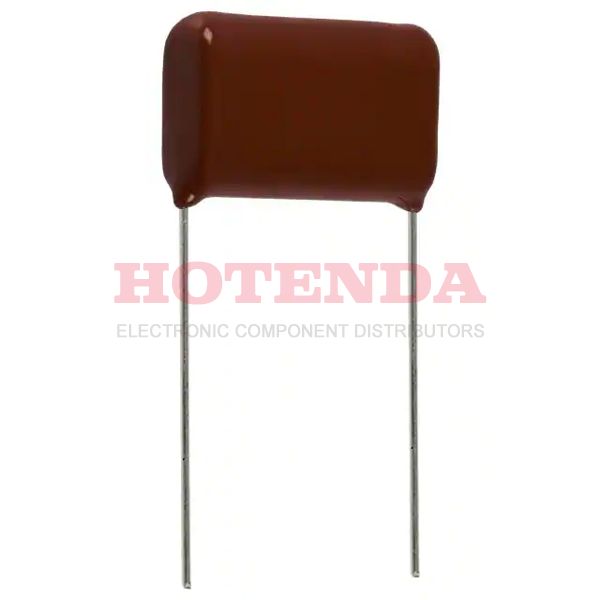

  • ECQ-E2275KFB - ECQ-E(F) 2.7μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2275KFB - ECQ-E(F) 2.7μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2275KFB

ECQ-E2275KFB

Panasonic Electronic Components

ECQ-E(F) 2.7μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2275KFB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2005
Series ECQ-E(F)
Size / Dimension 1.024Lx0.370W 26.00mmx9.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 2.7μF
Voltage - Rated DC 250V
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.591 15.00mm
Height Seated (Max) 0.866 22.00mm
Length 26mm
Width 9.4mm
RoHS StatusROHS3 Compliant
In-Stock:14868 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2275KFB Product Details

ECQ-E2275KFB Overview


A 0.591 15.00mm lead spacing is used in this electrical device.Temperatures of -40°C~105°C allow the device to operate.

ECQ-E2275KFB Features



ECQ-E2275KFB Applications


There are a lot of Panasonic Electronic Components ECQ-E2275KFB applications of film capacitors.

  • TV and monitor sets
  • RFI for automotive
  • Snubbering
  • Industrial and automotive inverters
  • Switch-mode power supplies
  • Test and measuring equipment
  • Blocking
  • Electronic ballasts
  • Switch mode power supplies
  • Bypassing
