160104J250D-F

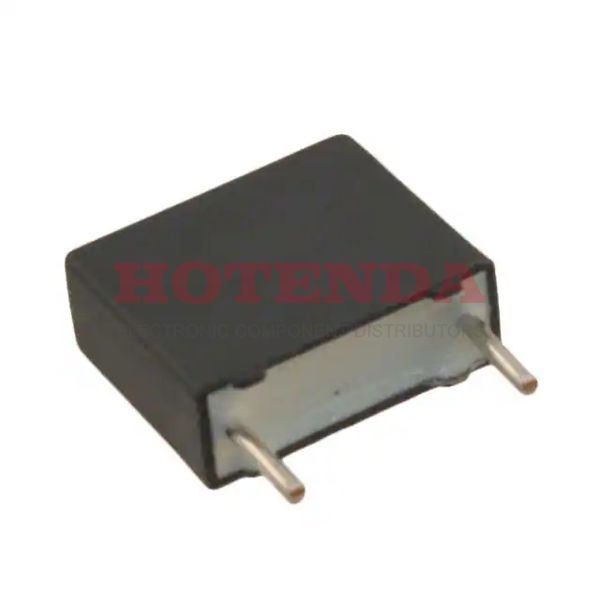

  • 160104J250D-F - 160 0.1μF Film Capacitor ±5% Radial PC Pins 250V-DC 160V-AC Polyester, Metallized PCB, Through Hole
  • 160104J250D-F - 160 0.1μF Film Capacitor ±5% Radial PC Pins 250V-DC 160V-AC Polyester, Metallized PCB, Through Hole

160104J250D-F

160104J250D-F

Cornell Dubilier Electronics (CDE)

160 0.1μF Film Capacitor ±5% Radial PC Pins 250V-DC 160V-AC Polyester, Metallized PCB, Through Hole

SOT-23

160104J250D-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 23 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2013
Series 160
Size / Dimension 0.512Lx0.197W 13.00mmx5.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature125°C
Min Operating Temperature -55°C
Applications General Purpose
Voltage - Rated 250V
Capacitance 0.1μF
Voltage - Rated DC 250V
Depth 5mm
Voltage - Rated AC 160V
Lead Pitch 10mm
Dielectric PET
Lead Spacing0.394 10.00mm
Lead Diameter 800 μm
Life (Hours) 1000 hours
Height 11mm
Height Seated (Max) 0.433 11.00mm
Length 13mm
Width 5mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:5189 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.176577$1.176577
10$1.109979$11.09979
100$1.047149$104.7149
500$0.987877$493.9385
1000$0.931959$931.959

160104J250D-F Product Details

160104J250D-F Overview


0.394 10.00mm is the lead spacing of this electrical device.-55°C~105°C is the maximum temperature at which the device can operate.

160104J250D-F Features



160104J250D-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) 160104J250D-F applications of film capacitors.

  • Coupling, decoupling
  • Snubbering
  • Switch-mode power supplies
  • RF Modules
  • VCO's
  • Global positioning systems
  • Filtering
  • Blocking
  • Lighting
  • Industrial and automotive inverters
