ECH-U1H273JX5

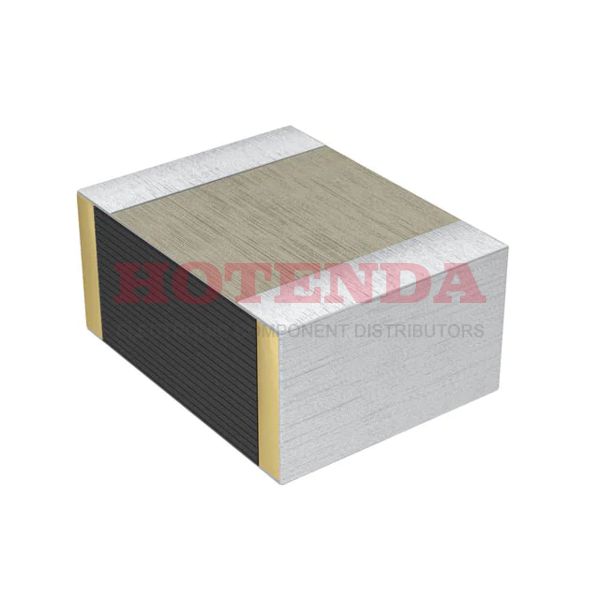

  • ECH-U1H273JX5 - ECH-U(X) 0.027μF Film Capacitor ±5% 1210 (3225 Metric) Solder Pads 50V-DC 50V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount
  • ECH-U1H273JX5 - ECH-U(X) 0.027μF Film Capacitor ±5% 1210 (3225 Metric) Solder Pads 50V-DC 50V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

ECH-U1H273JX5

ECH-U1H273JX5

Panasonic Electronic Components

ECH-U(X) 0.027μF Film Capacitor ±5% 1210 (3225 Metric) Solder Pads 50V-DC 50V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

SOT-23

ECH-U1H273JX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Contact PlatingCopper, Silver, Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2011
Series ECH-U(X)
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.45
Capacitance 0.027μF
Voltage - Rated DC 50V
Packing Method TR, EMBOSSED, 7 INCH
Depth 2.5mm
Voltage - Rated AC 50V
Case Code (Metric) 3225
Case Code (Imperial) 1210
Capacitor Type FILM CAPACITOR
Dielectric PPS
Multilayer No
Insulation Resistance3GOhm
Size Code 1310
Voltage 50V
Height 1.5mm
Height Seated (Max) 0.067 1.70mm
Length 3.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:11806 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.448879$0.448879
10$0.423471$4.23471
100$0.399500$39.95
500$0.376887$188.4435
1000$0.355555$355.555

ECH-U1H273JX5 Product Details

ECH-U1H273JX5 Overview


As a result of the device, there is a resistance of insulation of 3GOhm.In addition to operating at -55°C~125°C degrees, the device is capable of operating at other temperatures as well.

ECH-U1H273JX5 Features


3GOhm insulation resistance


ECH-U1H273JX5 Applications


There are a lot of Panasonic Electronic Components
ECH-U1H273JX5 applications of film capacitors.


  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
  • Compact fluorescent lamps (CFL)
  • Switch mode power supplies
