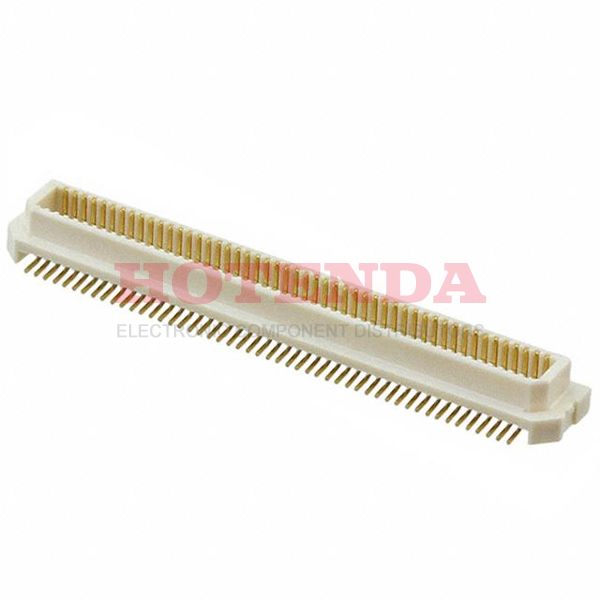

Name: AXK600247YG
Brand: Panasonic Electric Works
SKU: AXK600247YG
Price: 3.88000 USD
Availability: InStock

new-10%

AXK600247YG

Manufacturer part number:AXK600247YG

Manufacturer:Panasonic Electric Works

Description:AXK600247YG datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Panasonic Electric Works stock available on our website

Case Package:SOT-23

Datasheet:AXK600247YG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	NOT SPECIFIED
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Resin
Packaging	Tape & Reel (TR)
Published	2008
Series	P5K
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Outer Shroud Contacts
Number of Positions	100
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Male
Voltage - Rated	60V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	100
Orientation	Straight
Depth	5mm
Current Rating	500mA
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Contact Resistance	60mOhm
Max Voltage Rating (AC)	60V
Max Current Rating	10A
Max Voltage Rating (DC)	60V
Length	28.2mm
Height Above Board	0.114 2.90mm
Stack Height (Mating)	3.5mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

AXK600247YG Product Details

AXK600247YG Overview

Packaging is in the form of Header, Outer Shroud Contacts.Packaging for the product is carried out via a Tape & Reel (TR) case.There is a Surface Mount mounting type for the device.Among the products in the P5K Series, it is one of the most popular.When mounting this part, a Surface Mount socket must be used.Temperatures below 85°C are best for using it.A minimum temperature of -55°C is required for the operation of this device.There are also other features like LOW PROFILE, to name a few.
