Name: AXK5F14547YG
Brand: Panasonic Electric Works
SKU: AXK5F14547YG
Price: 1.12000 USD
Availability: InStock

new-10%

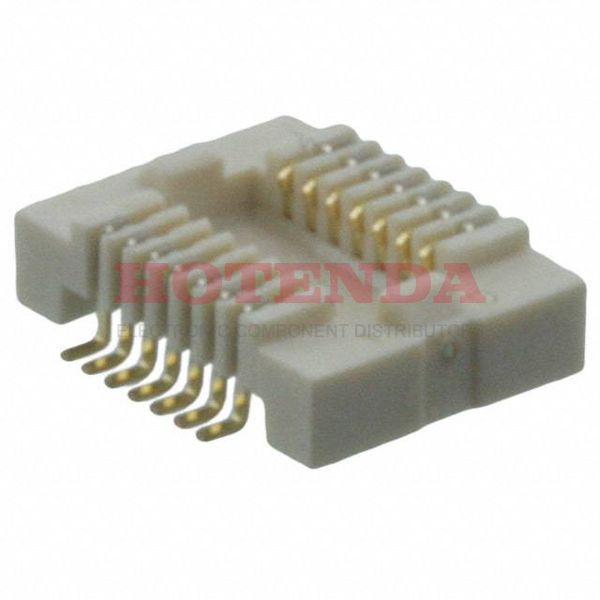

AXK5F14547YG

Manufacturer part number:AXK5F14547YG

Manufacturer:Panasonic Electric Works

Description:AXK5F14547YG datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Panasonic Electric Works stock available on our website

Case Package:SOT-23

Datasheet:AXK5F14547YG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	COPPER ALLOY
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Published	2008
Series	P5KF
JESD-609 Code	e4
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	14
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	2
Voltage - Rated	60V
Additional Feature	LOW PROFILE
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	14
Orientation	Straight
Depth	4.8mm
Current Rating	500mA
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	FEMALE
UL Flammability Code	94V-0
Contact Resistance	90mOhm
Max Voltage Rating (AC)	60V
Max Current Rating	10A
Max Voltage Rating (DC)	6.06kV
Length	6.5mm
Height Above Board	0.073 1.85mm
Stack Height (Mating)	2mm 2.5mm
RoHS Status	RoHS Compliant

AXK5F14547YG Product Details

AXK5F14547YG Overview

A Socket, Outer Shroud Contacts packaging is included.Packaging is performed using a Tape & Reel (TR) case.The mounting type of the device is Surface Mount.The product belongs to the P5KF Series.When mounting this part, a Surface Mount socket must be used.Use it below 85°C.Temperature must be -55°C to operate this device.Besides that, there's also LOW PROFILE, to name a few.
