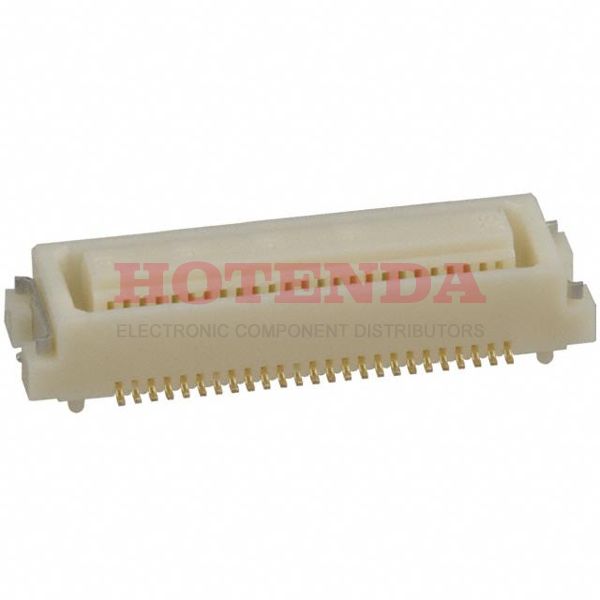

Name: DF17(3.0)-50DS-0.5V(57)
Brand: Hirose Electric Co Ltd
SKU: DF17(3.0)-50DS-0.5V(57)
Price: 2.10000 USD
Availability: InStock

new-10%

DF17(3.0)-50DS-0.5V(57)

Manufacturer part number:DF17(3.0)-50DS-0.5V(57)

Manufacturer:Hirose Electric Co Ltd

Description:DF17(3.0)-50DS-0.5V(57) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF17(3.0)-50DS-0.5V(57) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Bronze, Copper
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide
Packaging	Tape & Reel (TR)
Series	DF17
Feature	Board Guide, Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	50
Max Operating Temperature	85°C
Min Operating Temperature	-35°C
Number of Rows	2
Gender	Receptacle
Voltage - Rated	50V
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	50
Orientation	Straight
Depth	4.7mm
Reach Compliance Code	unknown
Current Rating	300mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.185 inch
UL Flammability Code	94V-0
Housing Color	White
Rated Current (Signal)	0.3A
Contact Style	BELLOWED TYPE
Contact Resistance	60mOhm
Row Spacing	5.7 mm
Max Voltage Rating (AC)	50V
Max Current Rating	300mA
Polarization Key	ENDS
Contact Pattern	RECTANGULAR
Length	17.5mm
Height Above Board	0.138 3.50mm
Stack Height (Mating)	5mm 5.5mm 7mm
Stack Height	7mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

DF17(3.0)-50DS-0.5V(57) Product Details

DF17(3.0)-50DS-0.5V(57) Overview

The product comes in a package of Receptacle, Center Strip Contacts.We use a Tape & Reel (TR) case to package the product.Surface Mount is the mounting type of the device.Among the products in the DF17 Series, it is one of the most popular.If you operate it, you can keep Board Guide, Solder Retention constant.It is necessary to use a Surface Mount socket in order to mount this part.It is best used at temperatures below 85°C.Temperature must be -35°C to operate this device.
