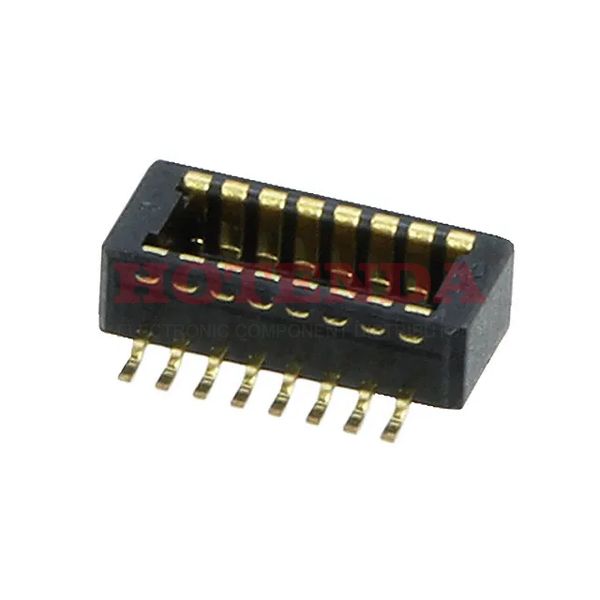

Name: DF40C-12DP-0.4V(58)
Brand: Hirose Electric Co Ltd
SKU: DF40C-12DP-0.4V(58)
Price: 1.03000 USD
Availability: InStock

new-10%

DF40C-12DP-0.4V(58)

Manufacturer part number:DF40C-12DP-0.4V(58)

Manufacturer:Hirose Electric Co Ltd

Description:Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 12 Positions DF40 Gold Solder PHOSPHOR BRONZE

Case Package:SOT-23

Datasheet:DF40C-12DP-0.4V(58) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	PHOSPHOR BRONZE
Mount	Surface Mount
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Packaging	Tape & Reel (TR)
Series	DF40
Feature	Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	12
Number of Rows	2
Voltage - Rated	30V
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Pitch	0.016 0.40mm
Total Number of Contacts	12
Orientation	Straight
Reach Compliance Code	unknown
Current Rating	300mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.154 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Body Breadth	0.073 inch
Contact Gender	MALE
Operating Temperature (Min)	-35°C
Body Depth	0.045 inch
Rated Current (Signal)	0.3A
Contact Style	CENTRONIC
Contact Resistance	90mOhm
Insulation Resistance	50000000Ohm
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	100VAC V
Durability	30 Cycles
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Height Above Board	0.045 1.14mm
Stack Height (Mating)	1.5mm 2mm 2.5mm 3mm 3.5mm 4mm
RoHS Status	RoHS Compliant

DF40C-12DP-0.4V(58) Product Details

DF40C-12DP-0.4V(58) Overview

Packaging is Plug, Outer Shroud Contacts.Packaging for the product is carried out via a Tape & Reel (TR) case.Surface Mount is the mounting type.As a product of the DF40 Series, it can be found in this category.By operating the device, Solder Retention is maintained at all times.When mounting this part, a Surface Mount socket must be used.
