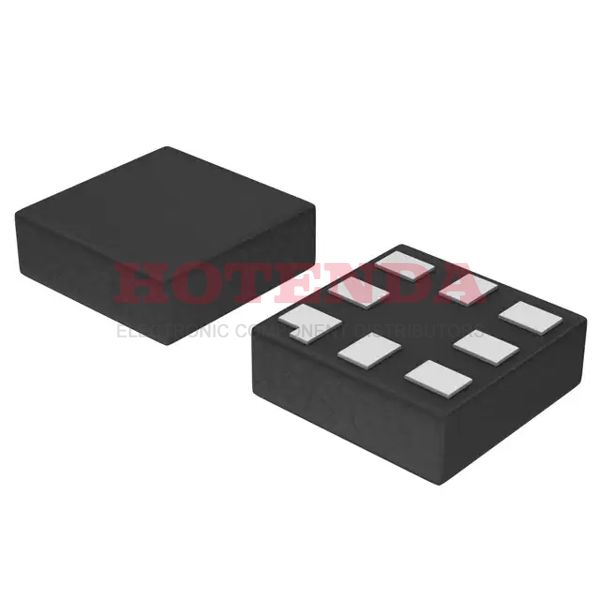

NLX1G74MUTCG Overview
8-UFQFNis the packaging method. It is included in the package Tape & Reel (TR). There is a Differentialoutput configured with it. It is configured with the trigger Positive Edge. It is mounted in the way of Surface Mount. A voltage of 1.65V~5.5Vis required for its operation. -40°C~85°C TAis the operating temperature. It is an electronic flip flop with the type D-Type. You should not exceed 200MHzin its output frequency. A total of 1 elements are present. This process consumes 1μA quiescents. Terminations are 8. You can search similar parts based on 74LX1G74. A voltage of 1.8V provides power to the D latch. Its input capacitance is 7pFfarads. CMOSis the family of this D flip flop. This electronic part is mounted in the way of Surface Mount. As you can see from the design, it has pins with 8. It has a clock edge trigger type of Positive Edge. An electronic part designed with 1bits is used in this application. As soon as 5.5Vis reached, Vsup reaches its maximum value.
NLX1G74MUTCG Features
Tape & Reel (TR) package
8 pins
1 Bits
NLX1G74MUTCG Applications
There are a lot of ON Semiconductor NLX1G74MUTCG Flip Flops applications.
- Shift Registers
- Parallel data storage
- Power down protection
- Balanced 24 mA output drivers
- Registers
- Frequency division
- Shift registers
- Reduced system switching noise
- Consumer
- Data transfer
