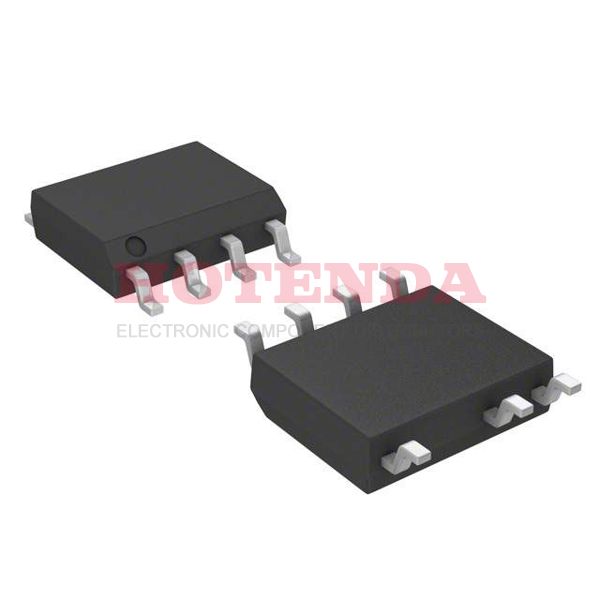

NCP1240ED065R2G Overview
8-SOIC (0.154, 3.90mm Width), 7 Leads is the package in which the ac to dc converter is embedded.It is available in Tape & Reel (TR) AC/DC power converter.Surface Mount mounts this AC/DC converter.For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.As soon as the switching frequency reaches 65kHz , the circuit is closed.As long as the supply voltage (Vcc/Vdd) is within the range of 9.3V~28V , the AC/DC converter may be used.In total, it has 7 terminations.It is suitable for mounting by Surface Mount .Based on a unique technique, it is possible to ensure input voltages with the maximal value of 28V .
NCP1240ED065R2G Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 65kHz
NCP1240ED065R2G Applications
There are a lot of ON Semiconductor NCP1240ED065R2G AC DC Converters applications.
- Power Adaptors
- ZigBee
- Replaces linear transformers
- PDAs
- Networking
- Records
- LED lights
- Wall switches
- AC/DC Adaptors/Chargers for Cell Phones
- Adaptors for DSCs
