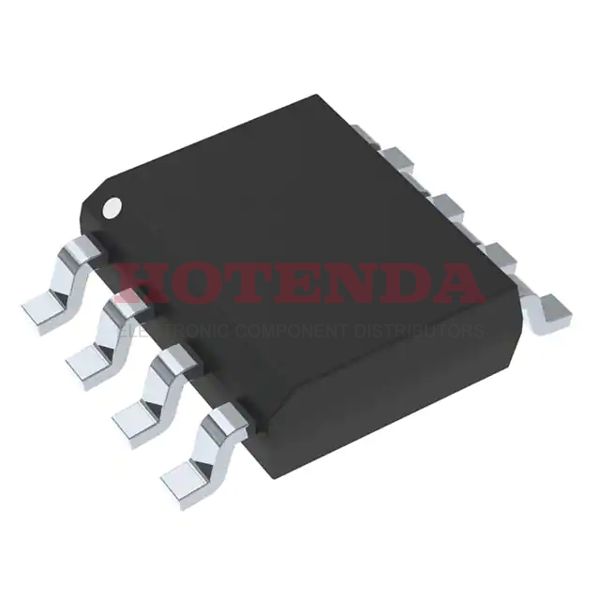

NB2304AC2DR2G Overview
As a clock IC, PLLs is packaged using the Tape & Reel (TR) method. This clock generator is embedded in the 8-SOIC (0.154, 3.90mm Width) package. Under reflowing process, this clock generator ic is able to sustain a maximum temperature of NOT SPECIFIED. 8 terminations can be found in frequency synthesizer. Basically, a voltage of 3.3V should be applied to this electronic frequency generator. Clock is designed as this clock generator's input. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 133.3MHz Max. This component can be conveniently installed on the panel thanks to the Surface Mount. The maximal supply voltage this clock generator would take is 3.6V. The supply voltage for this frequency synthesizer should be kept above 3V for safety considerations. Clock PLL works with 3V~3.6V supply voltage provided. The ambient temperature should be set at 0°C~70°C, which is estimated by the test statistics. This electronic component can be classified as a Zero Delay Buffer. This clock-generating IC is a 8-bit device designed explicitly for microprocessors. According to the base part number NB2304A, its related parts can be found. There is an available 8 pin on the clock generators. RF synthesizers can handle voltages up to 3.3V. This clock generator offers low timing skew at 0.4 ns Max. This digital clock generator is configured with 4 high true output enable pins.
NB2304AC2DR2G Features
Available in the 8-SOIC (0.154, 3.90mm Width)
Supply voltage of 3.3V
Operating supply voltage of 3.3V
4 true outputs
NB2304AC2DR2G Applications
There are a lot of ON Semiconductor
NB2304AC2DR2G Clock Generators applications.
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
