PI6C49015LIE Overview

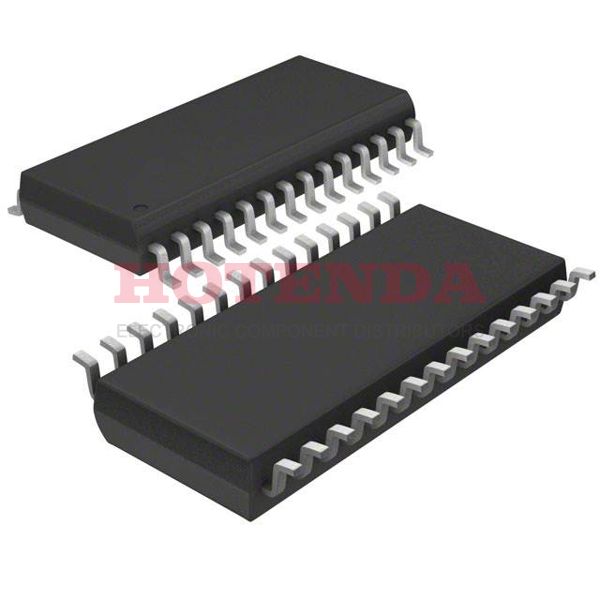

Tube-method packaging is used for clock ICs. The 28-TSSOP (0.173, 4.40mm Width) package contains this clock generator. It contains 28 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 3.3V. The input of this clock generator is designed to be LVCMOS, Crystal. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 100MHz Max with this clock-based frequency generator. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. This time clock generator integrates CLOCK GENERATOR, OTHER uPs, uCs, and peripheral ICs. As far as the supply voltage is concerned, clock PLL can be used with 3V~3.6V. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. As the name suggests, this is a clock generator that is compatible with HCSL, LVCMOS logic levels. You can find related electrical components to the base part number PI6C49015. This clock generator can be classified as a kind of Clock Generators in general. It is possible for an element to be thermally destroyed if clock PLL‘s supply current (greater than 65mA) is excessive.
PI6C49015LIE Features
Available in the 28-TSSOP (0.173, 4.40mm Width)
Supply voltage of 3.3V
PI6C49015LIE Applications
There are a lot of Diodes Incorporated
PI6C49015LIE Clock Generators applications.
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
