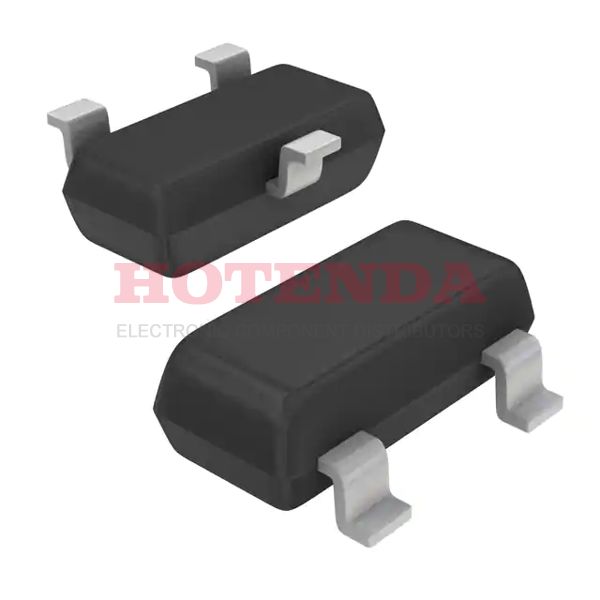

Name: MGSF1P02LT1
Brand: ON Semiconductor
SKU: MGSF1P02LT1
Availability: InStock

new-10%

MGSF1P02LT1

Manufacturer part number:MGSF1P02LT1

Manufacturer:ON Semiconductor

Description:MGSF1P02LT1 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:MGSF1P02LT1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2000
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8541.21.00.95
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PDSO-G3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	400mW Ta
Operating Mode	ENHANCEMENT MODE
FET Type	P-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	350m Ω @ 1.5A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	130pF @ 5V
Current - Continuous Drain (Id) @ 25°C	750mA Ta
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Continuous Drain Current (ID)	750mA
Drain Current-Max (Abs) (ID)	0.75A
Drain-source On Resistance-Max	0.35Ohm
DS Breakdown Voltage-Min	20V
RoHS Status	Non-RoHS Compliant

MGSF1P02LT1 Product Details

MGSF1P02LT1 Description

These small surface mount MOSFETs ensure little power loss and energy conservation, making them perfect for use in power management circuitry for sensitive space applications. Dc-dc converters and power management are typical uses in portable and battery-powered equipment such computers, printers, PCMCIA cards, mobile phones, and cordless phones.

MGSF1P02LT1 Features

Low RDS(on) Provides Higher Efficiency and Extends Battery Life
Miniature SOT–23 Surface Mount Package Saves Board Space

MGSF1P02LT1 Applications

Power Management
Consumer Electronics
Portable Devices
Industrial
