Name: AUIRF3504
Brand: Infineon Technologies
SKU: AUIRF3504
Availability: InStock

new-10%

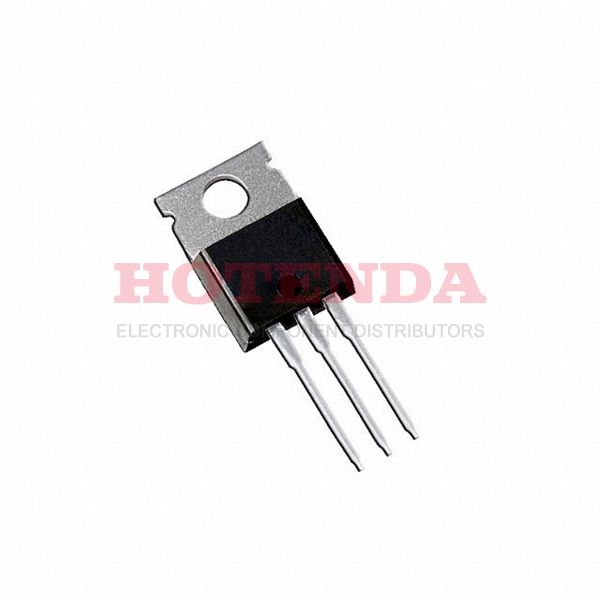

AUIRF3504

Manufacturer part number:AUIRF3504

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 40V 87A TO-220AB

Case Package:SOT-23

Datasheet:AUIRF3504 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2011
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED, HIGH RELIABILITY
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Power Dissipation-Max	143W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	143W
Case Connection	DRAIN
Turn On Delay Time	9.9 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	9.2m Ω @ 52A, 10V
Vgs(th) (Max) @ Id	4V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	2150pF @ 25V
Current - Continuous Drain (Id) @ 25°C	87A Tc
Gate Charge (Qg) (Max) @ Vgs	54nC @ 10V
Rise Time	61ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	29 ns
Turn-Off Delay Time	24 ns
Continuous Drain Current (ID)	87A
Threshold Voltage	2V
JEDEC-95 Code	TO-220AB
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.0092Ohm
Drain to Source Breakdown Voltage	40V
Nominal Vgs	2 V
Height	16.51mm
Length	10.66mm
Width	4.82mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
