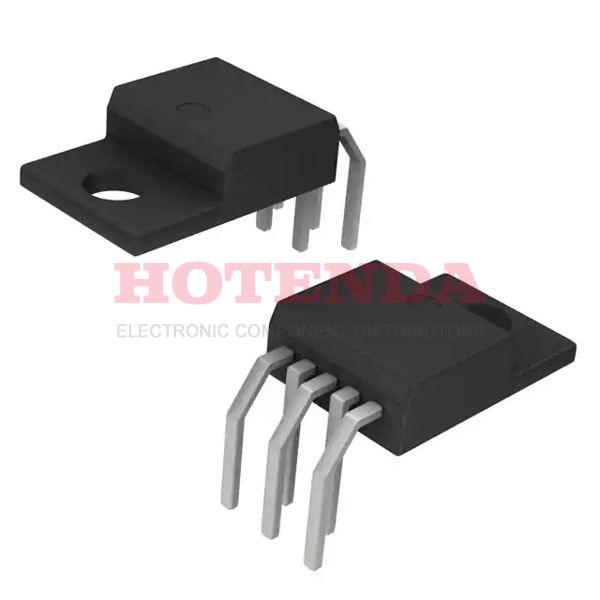

Name: MC33167TH
Brand: ON Semiconductor
SKU: MC33167TH
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-5 Formed Leads
Number of Pins	5
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2005
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Switching Regulator or Controllers
Technology	BIPOLAR
Terminal Position	ZIG-ZAG
Peak Reflow Temperature (Cel)	240
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	MC33167
Function	Step-Up, Step-Down
Number of Outputs	1
Output Voltage	40V
Output Type	Adjustable
Voltage - Input (Min)	7.5V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive or Negative
Current - Output	5.5A Switch
Voltage - Output (Min/Fixed)	5.05V
Topology	Buck, Boost
Control Mode	VOLTAGE-MODE
Frequency - Switching	72kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Switcher Configuration	BUCK-BOOST
Voltage - Output (Max)	40V Switch
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

MC33167TH Product Details

MC33167TH Overview

As a result of the use of the Tube package, the performance of this voltage regulator is optimized. There are 5 terminations in this harley voltage regulator. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. There is a TO-220-5 Formed Leads package available for this voltage regulator, as DC DC switching regulator is space-saving. The voltage regulator is configured with 1 outputs. Adjusting voltage regulator's output pins generate Adjustable output. There is a switching regulator that is compatible with the Through Hole mounting. As long as its operating temperature is -40°C~85°C TA, dc to dc voltage regulator should perform well. A DC-DC switching regulator such as this one switches at 72kHz. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. DC DC switching regulator's output voltage (Min/Fixed) amounts to 5.05V. As a result of the 5.5A Switch output current, voltage regulator offers maximum flexibility in design. Its 240 peak reflow temperature makes this regulator essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 12V for the purposes of operation. This voltage regulator is included in the Switching Regulator or Controllers subcategory. DC/DC regulators such as this one belong to the MC33167 family of products. A voltage of 40V volts can be generated by DC DC switching regulator. In order to operate voltage regulator, there are 5 pins that must be connected. On the basis of the maximum output voltage of 40V Switch, adjusting voltage regulator can be operated easily.
