Name: CS8141YDPS7
Brand: ON Semiconductor
SKU: CS8141YDPS7
Price: 2.00000 USD
Availability: InStock

new-10%

CS8141YDPS7

Manufacturer part number:CS8141YDPS7

Manufacturer:ON Semiconductor

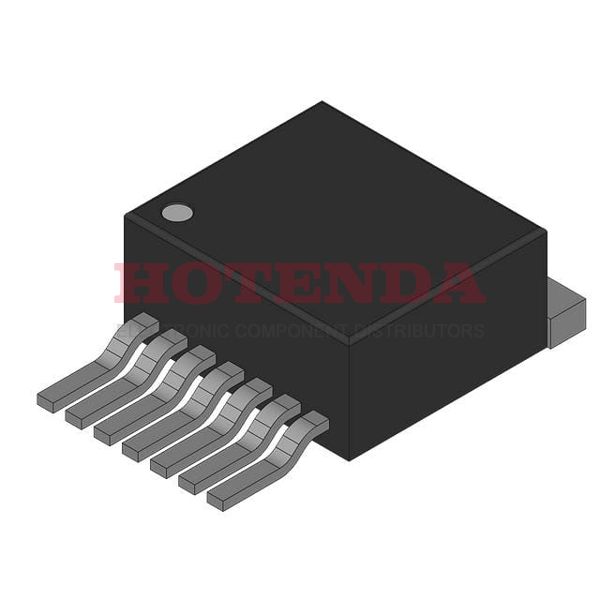

Description:1.27mm PMIC 7 D2PAK

Case Package:SOT-23

Datasheet:CS8141YDPS7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	D2PAK
Surface Mount	YES
JESD-609 Code	e0
Pbfree Code	no
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	7
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8542.39.00.01
Terminal Position	SINGLE
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	1.27mm
Pin Count	7
JESD-30 Code	R-PSSO-G7
Number of Outputs	1
Qualification Status	Not Qualified
Operating Temperature (Max)	125°C
Operating Temperature (Min)	-40°C
Voltage - Output	5V
Output Voltage 1	5V
Input Voltage (Min)	7V
Input Voltage (Max)	26V
Dropout Voltage1-Nom	1.25V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	4%
Output Current1-Max	0.5A
Operating Temperature TJ-Max	150°C
Input Voltage Absolute-Max	26V
Adjustability	FIXED
Load Regulation-Max(%)	0.08%
Line Regulation-Max (%/V)	0.025%
Operating Temperature TJ-Min	-40°C
Length	10.18mm
Height Seated (Max)	4.572mm
Width	8.405mm
RoHS Status	RoHS Compliant
Lead Free	Contains Lead

CS8141YDPS7 Product Details

CS8141YDPS7 Overview

This voltage regulator IC comes in a D2PAK case. On the regulater IC chip, there are a total of 7 terminations. A total of 7 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As a result, this IC regulator will typically output 5V volts as a system.
