Name: TLV70518PYFPT
Brand: Texas Instruments
SKU: TLV70518PYFPT
Price: 1.21000 USD
Availability: InStock

new-10%

TLV70518PYFPT

Manufacturer part number:TLV70518PYFPT

Manufacturer:Texas Instruments

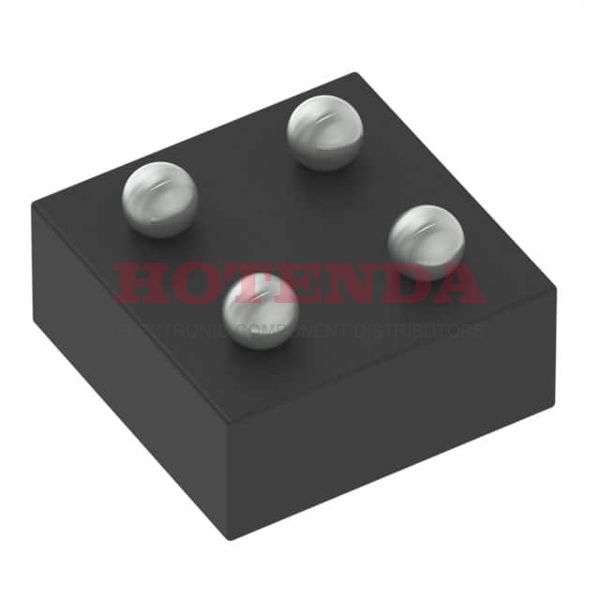

Description:Enable Fixed TLV70518 PMIC 4-XFBGA, DSBGA

Case Package:SOT-23

Datasheet:TLV70518PYFPT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	4-XFBGA, DSBGA
Number of Pins	4
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
JESD-609 Code	e1
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TLV70518
Current - Supply (Max)	315μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	550mA
Output Configuration	Positive
Current - Output	200mA
Quiescent Current	55μA
Control Features	Enable
Accuracy	0.5 %
Output Voltage 1	1.8V
Number of Regulators	1
Min Input Voltage	2V
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	55μA
Voltage Dropout (Max)	0.25V @ 200mA
PSRR	80dB ~ 55dB (10kHz ~ 1MHz)
Dropout Voltage	220mV
Dropout Voltage1-Nom	0.22V
Height	500μm
Length	0m
Width	0m
Thickness	0m
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TLV70518PYFPT Product Details

TLV70518PYFPT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 4-XFBGA, DSBGA package. There are 4 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C TJ degrees. This regulator's output function is configured to be Positive. Its current output stands at 200mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 4. FYI, the basic part number for this IC regulator is TLV70518. It works in 550mA output current at mostIt operates in the 55μA Quiescent Current state.
