74AC377SC Overview

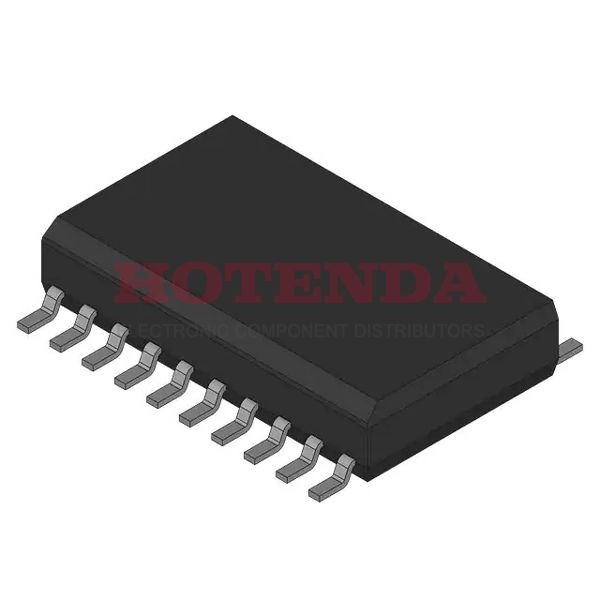

20-SOIC (0.295, 7.50mm Width)is the packaging method. A package named Tubeincludes it. The output it is configured with uses Non-Inverted. It is configured with a trigger that uses Positive Edge. The electronic part is mounted in the way of Surface Mount. A voltage of 2V~6Vis required for its operation. A temperature of -40°C~85°C TAis considered to be the operating temperature. There is D-Type type of electronic flip flop associated with this device. In this case, it is a type of FPGA belonging to the 74AC series. It should not exceed 175MHzin terms of its output frequency. The list contains 1 elements. There is 40μA quiescent consumption. The 74AC377 family contains it. Its input capacitance is 4.5pFfarads. It is mounted in the way of Surface Mount. A total of 20pins are provided on this board. In this device, the clock edge trigger type is Positive Edge. This flip flop is designed with 8 Bits. The superior flexibility is achieved through the use of 8 circuits. It offers maximum design flexibility with its output current of 24mA. In order to operate, the chip has 8 output lines. A total of 1input lines have been provided. -24mAis set as the high level output current. The low level output current is set to 24mA. A temperature below 85°Cshould be used for operation. Temperatures above -40°Cshould be used. The system operates with a minimum supply voltage of 2V. It is capable of supporting a maximum supply voltage of 6V. It is possible to obtain a frequency of 125MHz.
74AC377SC Features
Tube package
74AC series
20 pins
8 Bits
74AC377SC Applications
There are a lot of ON Semiconductor 74AC377SC Flip Flops applications.
- Control circuits
- Count Modes
- Asynchronous counter
- Latch
- Power down protection
- QML qualified product
- Communications
- Data Synchronizers
- Safety Clamp
- Single Up Count-Control Line
