SA8027DH,518 Overview

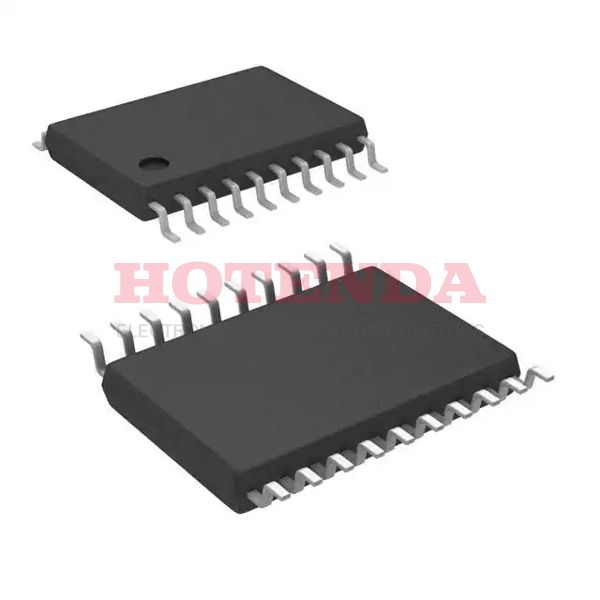

As a clock IC, it is packaged by the Tape & Reel (TR) method. Clock PLL is embedded in the 20-TSSOP (0.173, 4.40mm Width) package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. There are 20 terminations found in this file. Clock generator ics require a voltage of 3V. This Clock PLL will be fed by Clock as its input. To access the full performance of the electronic component, 1 circuits are implemented. 2.5GHz is the maximal value for normal operation. Thanks to the Surface Mount, this electric component can easily be installed on a panel. Approximately 3.6V is the maximum supply voltage needed by this time clock generator. It is safe to use this frequency synthesizer with a supply voltage above 2.7V. Clock generators should operate with the voltage supply of 2.7V~3.6V. Based on test statistics, ambient temperature should be set at -40°C~85°C. It is possible to classify this electronic component as a Fractional N Synthesizer. In particular, this clock PLL is designed to be used with microprocessors. The related electrical components for the base part number SA8027 can be found below.
SA8027DH,518 Features
Available in the 20-TSSOP (0.173, 4.40mm Width)
Supply voltage of 3V
SA8027DH,518 Applications
There are a lot of NXP USA Inc. SA8027DH,518 Clock Generators applications.
- Main oscillator in receiver
- Wi-Fi routers
- Signal modulation and demodulation
- Various decoding circuits
- Mobile telephones
- Camera systems
- Automatic control system test
- Antenna automatic tracking
- Picocells, femtocells and small cells
- Aerospace and defense
