840024AGILFT Overview

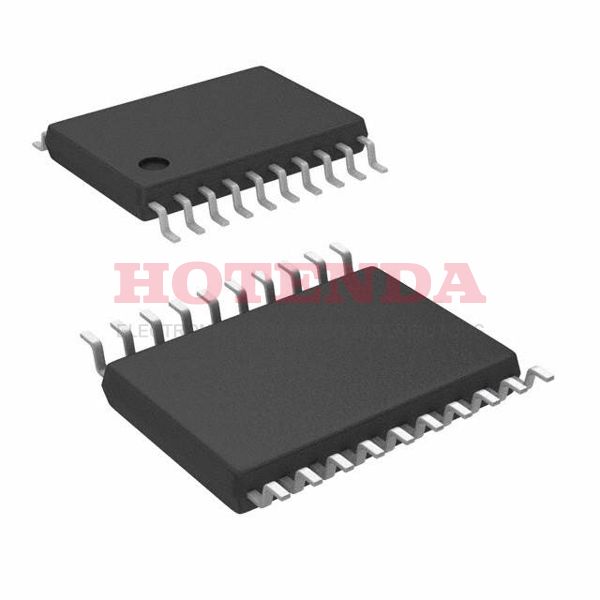

It is packaged using the Tape & Reel (TR) method since it is a clock IC. Embedded in the 20-TSSOP (0.173, 4.40mm Width) package is this Clock PLL. It is designed that the Clock PLL's input should be LVCMOS, LVTTL, Crystal. A total of 1 circuits are implemented to access the full performance of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 125MHz. Because of the Surface Mount, clock PLL can be easily mounted on the panel. As long as you provide 2.375V~3.465V supply voltage, it will work. Using the test statistics, we estimate that the ambient temperature should be -40°C~85°C. The RF synthesizer is compatible with LVCMOS, LVTTL logic levels. An electrical part such as this one can be classified as a Frequency Synthesizer component. This part number is related to its related electronic parts. An electronic part belonging to the FemtoClock® series is being used here.
840024AGILFT Features
Available in the 20-TSSOP (0.173, 4.40mm Width)
840024AGILFT Applications
There are a lot of Renesas Electronics America Inc.
840024AGILFT Clock Generators applications.
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
- Media broadcast servers
