Name: MKL02Z16VFM4
Brand: NXP USA Inc.
SKU: MKL02Z16VFM4
Availability: InStock

new-10%

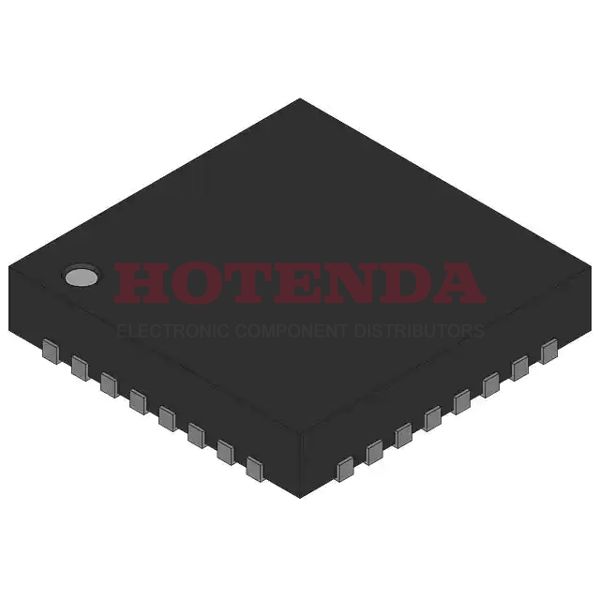

MKL02Z16VFM4

Manufacturer part number:MKL02Z16VFM4

Manufacturer:NXP USA Inc.

Description:16KB 16K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller Kinetis KL02 Series MKL02Z16 3.3V 32-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:MKL02Z16VFM4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	Kinetis KL02
Published	2002
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MKL02Z16
JESD-30 Code	S-XQCC-N32
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	1.8/3.3V
Supply Voltage-Min (Vsup)	1.71V
Oscillator Type	Internal
Number of I/O	28
Speed	48MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	1.71V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, LVD, POR, PWM, WDT
Clock Frequency	24MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	6.4mA
Bit Size	32
Data Converter	A/D 14x12b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
ROM (words)	16384
CPU Family	CORTEX-M0
Length	5mm
Width	5mm
RoHS Status	Non-RoHS Compliant

MKL02Z16VFM4 Product Details

MKL02Z16VFM4 Overview

There is a 32-VFQFN Exposed Pad package available. The board has 28 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~105°C TA is the temperature range at which this Microcontroller operates. Kinetis KL02-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 16KB 16K x 8. Powered by a ARM® Cortex®-M0+ Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 32. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of NO DMA channels are available. There are a number of alternatives to the base part number MKL02Z16 that you can find. Using YES PWM channels, the device works. The device is powered by the the CORTEX-M0 CPU family that is embedded in it. As far as the clock frequency is concerned, it operates at 24MHz clock speed.
