Name: R5F56514EDFP#30
Brand: Renesas Electronics America
SKU: R5F56514EDFP#30
Availability: InStock

new-10%

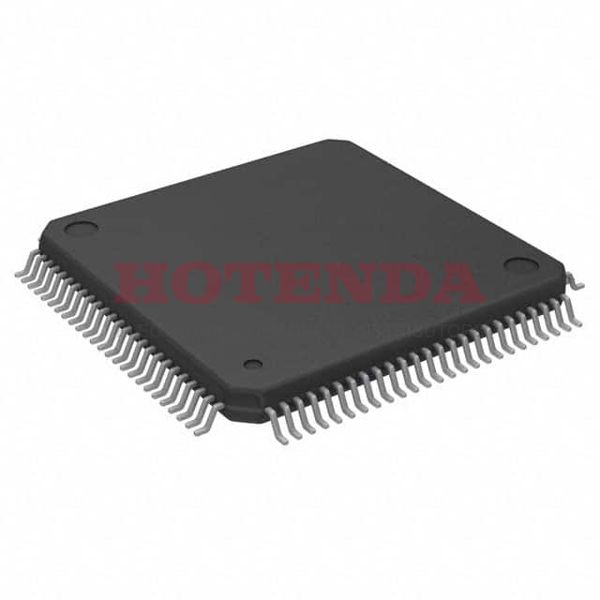

R5F56514EDFP#30

Manufacturer part number:R5F56514EDFP#30

Manufacturer:Renesas Electronics America

Description:512KB 512K x 8 FLASH RXv2 32-Bit Microcontroller RX651 Series 100 Pin 3.3V 100-LQFP

Case Package:SOT-23

Datasheet:R5F56514EDFP#30 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mounting Type	Surface Mount
Package / Case	100-LQFP
Surface Mount	YES
Number of Pins	100
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	RX651
Published	2017
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	48
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Pin Count	100
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.7V
Oscillator Type	Internal
Number of I/O	78
Speed	120MHz
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	RXv2
Peripherals	DMA, LVD, POR, PWM, WDT
Clock Frequency	24MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 22x12b; D/A 1x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
Address Bus Width	24
External Data Bus Width	16
Length	6mm
Width	6mm
RoHS Status	ROHS3 Compliant

R5F56514EDFP#30 Product Details

R5F56514EDFP#30 Overview

In a 100-LQFP package, the MCU is available. 78 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 32-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. RX651 series components make up this electrical component. 512KB 512K x 8 is the size of its program memory. A RXv2 Core processor is used to power the device. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 48 is the number of terminations on the IC chip that are present. This part works in a 32-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. The device works in YES PWM channels. Located on the chip are 100 pins. There are 100 pins on it. A 24MHz-clock frequency is used to operate it.
