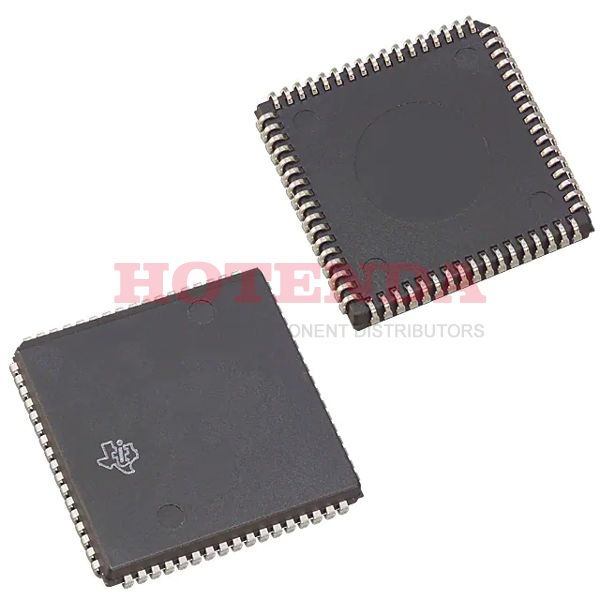

16KB 16K x 8 OTP MSP430 16-Bit Microcontroller MSP430x3xx Series 68 Pin 8MHz 5V 68-LCC (J-Lead)
SOT-23
MSP430P325IFN Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
68-LCC (J-Lead)
Number of Pins
68
Weight
4.869796g
Operating Temperature
-40°C~85°C TA
Packaging
Tube
Series
MSP430x3xx
JESD-609 Code
e4
Pbfree Code
no
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
68
Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position
QUAD
Terminal Form
J BEND
Peak Reflow Temperature (Cel)
260
Supply Voltage
5V
Frequency
8MHz
Pin Count
68
Supply Voltage-Max (Vsup)
5.5V
Power Supplies
3/5V
Interface
UART, USART
Memory Size
16kB
Oscillator Type
Internal
Number of I/O
14
Speed
3.3 MHz
RAM Size
512 x 8
Memory Type
EPROM, OTP
Voltage - Supply (Vcc/Vdd)
2.5V~5.5V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Core Processor
MSP430
Peripherals
LCD, POR, WDT
Program Memory Type
OTP
Core Size
16-Bit
Program Memory Size
16KB 16K x 8
Connectivity
UART/USART
Bit Size
16
Data Converter
A/D 6x14b
Access Time
3 μs
Has ADC
YES
DMA Channels
NO
Data Bus Width
16b
PWM Channels
NO
DAC Channels
NO
Number of Timers/Counters
2
ROM (words)
16384
RAM (bytes)
512
Height Seated (Max)
4.57mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead
In-Stock:3653 items
MSP430P325IFN Product Details
MSP430P325IFN Description
The MSP430P325IFN is an ultralow-power mixed-signal microcontroller from the MSP430 family which is designed to be battery operated for an extended application lifetime.
MSP430P325IFN Features
Low Supply Voltage Range, 2.7 V – 5.5 V
Low Operation Current, 3 mA at 1 MHz, 3 V
Ultralow Power Consumption (Standby Mode Down to 0.1 A)
Five Power-Saving Modes
Wakeup From Standby Mode in 6 μs
16-Bit RISC Architecture, 300 ns Instruction Cycle Time
Single Common 32 kHz Crystal, Internal System Clock up to 3.3 MHz
Integrated LCD Driver for up to 84 Segments
Integrated 12+2 Bit A/D Converter
Family Members Include:
– MSP430P325, 16KB OTP, 512 Byte RAM
EPROM Version Available for Prototyping: PMS430E325
Serial Onboard Programming
Programmable Code Protection by Security fuse
MSP430P325IFN Applications
Battery Uses
Related Products
Similar Embedded - Microcontrollers from Texas Instruments and other manufacturers
