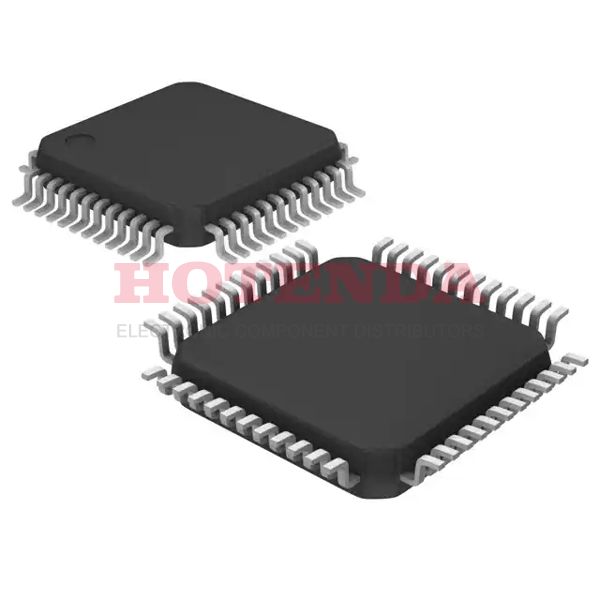

MC9S12C128MFAE Overview
The package is in 48-LQFP format. The MCU has 31 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 16-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~125°C TA. The electrical component that you are looking at belongs to the HCS12 series of components. Microcontroller has abundant program memory size of 128KB 128K x 8. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 48 of terminations. A 16-bit operation is performed by this part. There is an output of 2.5V volts from the Microcontroller chip. A total of NO DMA channels are available on MCU chip. MC9S12C128 serves as a base part number to find alternatives. It is possible for the device to work with the motor using the PWM channel YES. As far as the CPU is concerned, it is embedded with the the CPU12 family of processors. In terms of frequency, it operates at a 50MHz clock rate. In addition, there are several other features that can be found in the software, including ALSO REQUIRES 5V SUPPLY.
MC9S12C128MFAE Features
48-LQFP package
Mounting type of Surface Mount
MC9S12C128MFAE Applications
There are a lot of NXP USA Inc.
MC9S12C128MFAE Microcontroller applications.
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
- DVDDVMP3 players
