Name: MSP430FR2675TPT
Brand: Texas Instruments
SKU: MSP430FR2675TPT
Price: 5.68000 USD
Availability: InStock

new-10%

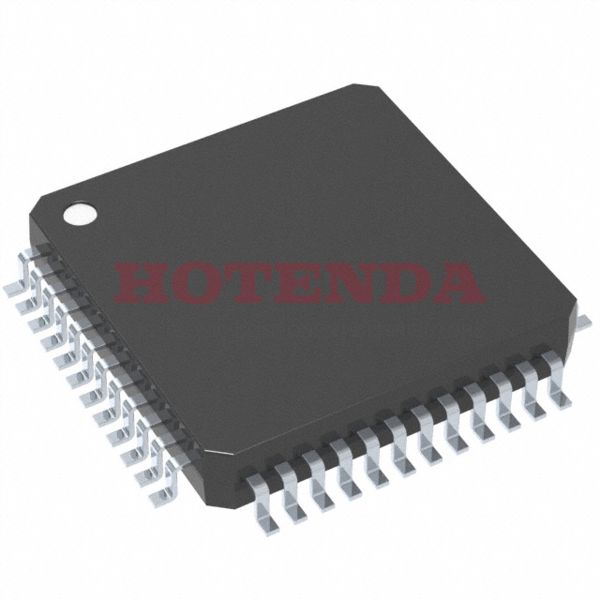

MSP430FR2675TPT

Manufacturer part number:MSP430FR2675TPT

Manufacturer:Texas Instruments

Description:32.5KB 32.5K x 8 FRAM MSP430 16-Bit Microcontroller MSP430™ FRAM Series 3V 48-LQFP

Case Package:SOT-23

Datasheet:MSP430FR2675TPT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	48-LQFP
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	MSP430™ FRAM
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	48
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3V
Terminal Pitch	0.5mm
JESD-30 Code	S-PQFP-G48
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	1.8V
Oscillator Type	Internal
Number of I/O	43
Speed	16MHz
RAM Size	6K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	MSP430
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Clock Frequency	0.032MHz
Program Memory Type	FRAM
Core Size	16-Bit
Program Memory Size	32.5KB 32.5K x 8
Connectivity	I2C, IrDA, SCI, SPI, UART/USART
Supply Current-Max	3.75mA
Bit Size	16
Data Converter	A/D 12x12b SAR
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
ROM (words)	32768
On Chip Program ROM Width	8
Boundary Scan	YES
Low Power Mode	YES
Format	FLOATING-POINT
Integrated Cache	NO
RAM (words)	3072
RAM (bytes)	6144
Number of Serial I/Os	2
Number of Timers	5
On Chip Data RAM Width	16
Length	7mm
Height Seated (Max)	1.6mm
Width	7mm
RoHS Status	ROHS3 Compliant

MSP430FR2675TPT Product Details

MSP430FR2675TPT Overview

In a 48-LQFP package, the MCU is available. 43 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FRAM type of memory for its program. There is a temperature range of -40°C~105°C TA that is operated by this Microcontroller. MSP430™ FRAM series components make up this electrical component. 32.5KB 32.5K x 8 is the size of its program memory. A MSP430 Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 48 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3V volt supply output on the chip. DMA channels number NO. The device works in YES PWM channels. A 0.032MHz-clock frequency is used to operate it. There are 2 serial I/Os incorporated into the chip part. It is possible to have 5 bits in a IC chip.
