Name: ATMEGA324P-20AUR
Brand: Microchip Technology
SKU: ATMEGA324P-20AUR
Price: 6.77000 USD
Availability: InStock

new-10%

ATMEGA324P-20AUR

Manufacturer part number:ATMEGA324P-20AUR

Manufacturer:Microchip Technology

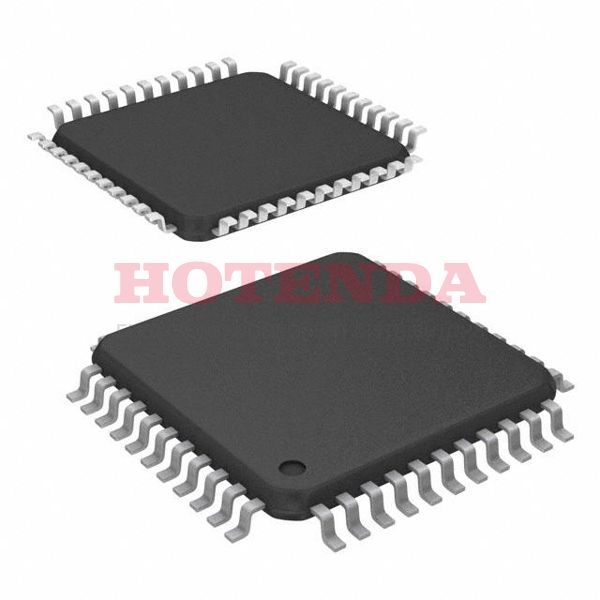

Description:32KB 16K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA324P 44 Pin 20MHz 5V 44-TQFP

Case Package:SOT-23

Datasheet:ATMEGA324P-20AUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-TQFP
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-TQFP (10x10)
Number of Terminals	44
Mounting Style	SMD/SMT
Interfaces	SPI/USART
Data Converters	A/D 8x10b
MSL	MSL 3 - 168 hours
Qualification	-
Number of I/Os	32 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	2-Wire/JTAG/SPI/USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA324
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	32
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATmega
Published	2010
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Matte Tin (Sn)
Additional Feature	OPERATES AT 2.7 V MIMIMUM SUPPLY AT 10 MHZ
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATMEGA324P
JESD-30 Code	S-PQFP-G44
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5 V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Interface	2-Wire, I2C, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	32
Speed	20MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	9 mA
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	16384
EEPROM Size	1K x 8
CPU Family	AVR RISC
RAM (bytes)	2048
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	10mm
Height Seated (Max)	1.2mm
Width	10 mm
Height	1 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ATMEGA324P-20AUR Product Details

ATMEGA324P-20AUR Overview

There is a 44-TQFP package available. The board has 32 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. AVR® ATmega-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 32KB 16K x 16. Powered by a AVR Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. This IC part has a memory size of 32kB. There are a number of alternatives to the base part number ATMEGA324P that you can find. Performing well when operated at frequency 20MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 44 pins that can be accessed. It comes with 3 timers/counters that can be set up. The device is powered by the the AVR RISC CPU family that is embedded in it. In addition to these features, there are a number of other ones, such as this one: OPERATES AT 2.7 V MIMIMUM SUPPLY AT 10 MHZ.
