Name: BSH121,135
Brand: Nexperia USA Inc.
SKU: BSH121,135
Availability: InStock

new-10%

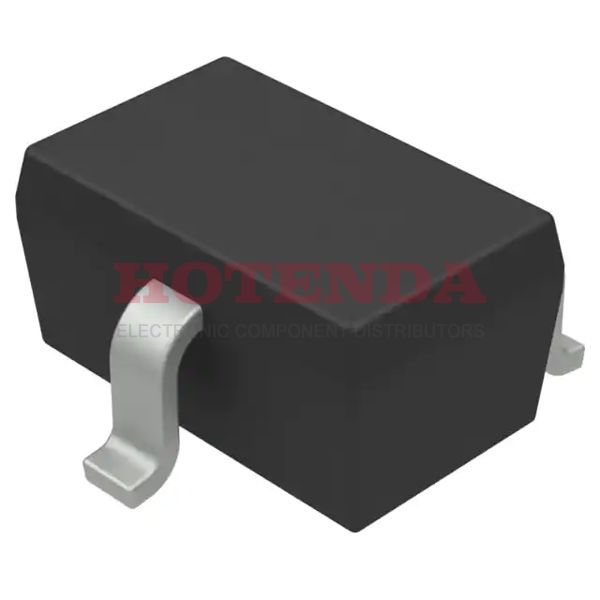

BSH121,135

Manufacturer part number:BSH121,135

Manufacturer:Nexperia USA Inc.

Description:MOSFET N-CH 75V 300MA SOT323

Case Package:SOT-23

Datasheet:BSH121,135 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Surface Mount	YES
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-65°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	1997
Series	TrenchMOS™
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.29.00.75
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	700mW Tc
Operating Mode	ENHANCEMENT MODE
Power Dissipation	700mW
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	4 Ω @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	40pF @ 10V
Current - Continuous Drain (Id) @ 25°C	300mA Ta
Gate Charge (Qg) (Max) @ Vgs	1nC @ 8V
Drain to Source Voltage (Vdss)	75V
Drive Voltage (Max Rds On,Min Rds On)	1.8V 4.5V
Vgs (Max)	±8V
Continuous Drain Current (ID)	300mA
Drain-source On Resistance-Max	4Ohm
DS Breakdown Voltage-Min	55V
Feedback Cap-Max (Crss)	10 pF
RoHS Status	RoHS Compliant
