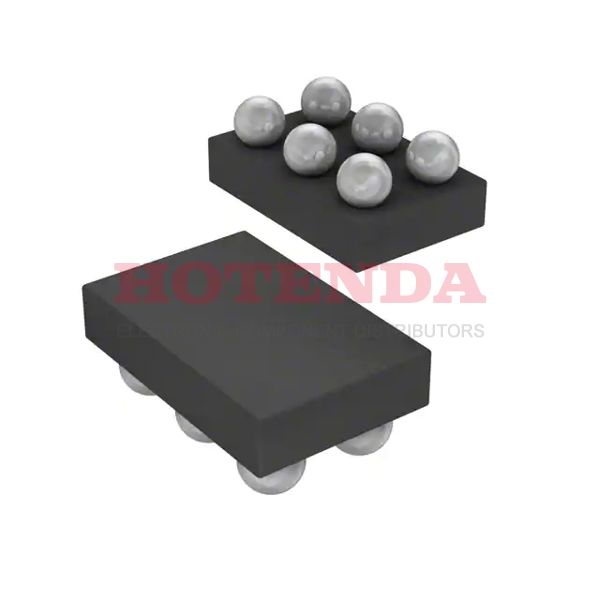

Name: SI8451DB-T2-E1
Brand: Vishay Siliconix
SKU: SI8451DB-T2-E1
Availability: InStock

new-10%

SI8451DB-T2-E1

Manufacturer part number:SI8451DB-T2-E1

Manufacturer:Vishay Siliconix

Description:MOSFET 20V 10.8A 13W 80mohm @ 4.5V

Case Package:SOT-23

Datasheet:SI8451DB-T2-E1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-UFBGA
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2009
Series	TrenchFET®
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Resistance	80mOhm
Terminal Finish	PURE MATTE TIN
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	30
Pin Count	8
JESD-30 Code	R-PBGA-B6
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	2.77W Ta 13W Tc
Operating Mode	ENHANCEMENT MODE
Power Dissipation	2.77W
FET Type	P-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	80m Ω @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	750pF @ 10V
Current - Continuous Drain (Id) @ 25°C	10.8A Tc
Gate Charge (Qg) (Max) @ Vgs	24nC @ 8V
Rise Time	30ns
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	1.5V 4.5V
Vgs (Max)	±8V
Fall Time (Typ)	30 ns
Turn-Off Delay Time	45 ns
Continuous Drain Current (ID)	-10.8A
Gate to Source Voltage (Vgs)	8V
Drain Current-Max (Abs) (ID)	5A
Drain to Source Breakdown Voltage	-20V
Pulsed Drain Current-Max (IDM)	15A
RoHS Status	ROHS3 Compliant

About SI8451DB-T2-E1

The SI8451DB-T2-E1 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET 20V 10.8A 13W 80mohm @ 4.5V.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment
