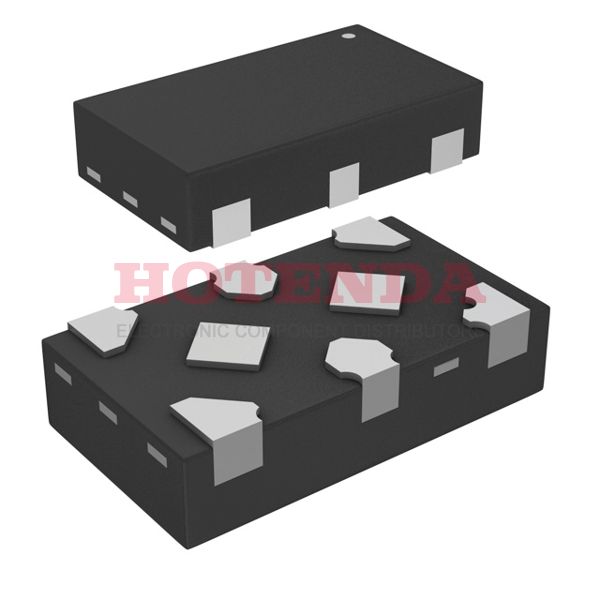

74LVC2G86GXX Overview
As the part is packed in 8-XFDFN Exposed Pad, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the XOR (Exclusive OR) principle. Ensure the part's full functionality by setting the voltage to 3.3V~5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 74LVC is its series number. Total terminations are 8. Users will benefit significantly from 2 functions in this part. There is a chip like this in LVC/LCX/Z. Inputs for the part are set to 2. There are 2 circuits in this device. The device must be supplied with a minimum voltage of 1.65V. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. Standby current is 4μA.
74LVC2G86GXX Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC2G86GXX Applications
There are a lot of Nexperia USA Inc.
74LVC2G86GXX Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
