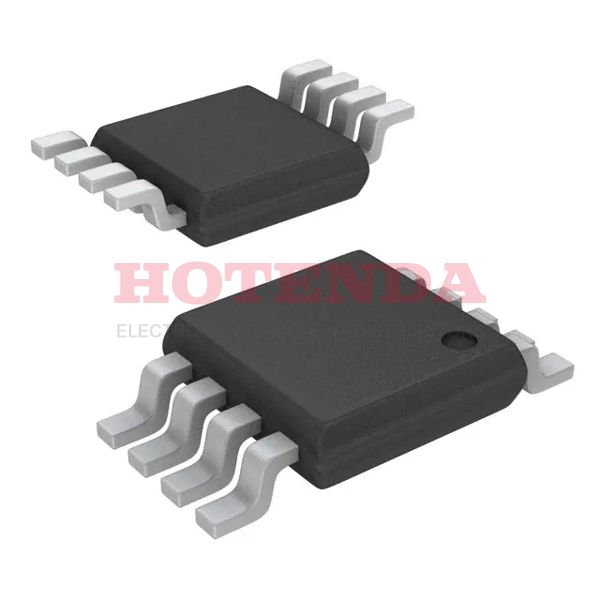

74HC2G00DP,125 Overview
The part can be shipped overseas conveniently because it is packaged in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width). In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of NAND Gate. The part must have a voltage of 2V~6V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 5.2mA 5.2mA. This is part of the 74HC series. In total, there are 8 terminations. 2 functions in the part enhance the user experience significantly. The chip is part of the HC/UH family. Use 74HC2G00 to search for device variants. There are 8 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 8 pins can be found in the datasheets. When the part is quiescent, 20μA current flows through it. Devices require a minimum voltage of 2V. As soon as Vsup reaches 6V, the maximal supply voltage (Vsup) is reached. The device has 1 outputs. It is specified that the operating supply voltage for the chip will be 5V volts. A logical operation through a gate of 2.
74HC2G00DP,125 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
HC/UH Family
Quiescent Current: 20μA
2 Gates
74HC2G00DP,125 Applications
There are a lot of Nexperia USA Inc.
74HC2G00DP,125 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
