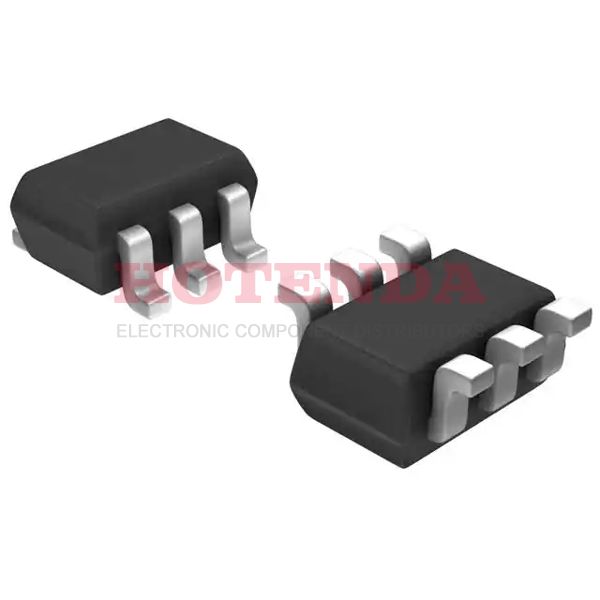

NC7SZ332P6X Overview
Packed in 6-TSSOP, SC-88, SOT-363, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the OR Gate logic principle. To ensure the part's full function, a voltage of 1.65V~5.5V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Surface Mount. The high and low state of output current is 32mA 32mA. It comes from the 7SZ series. There are 6 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 7SZ332. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 6 pins functions. The part supports 3 inputs. In the quiescent state, the part has 2μA current flowing through it. The part bears a load capacitance of 50pF. The supply voltage should not exceed 5.5V. It is packed with the industry TAPE AND REEL method. The device's output current is rated 32mA. Totally, there are 1 elements used for operation.
NC7SZ332P6X Features
OR Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 2μA
Output Current: 32mA
NC7SZ332P6X Applications
There are a lot of ON Semiconductor
NC7SZ332P6X Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
