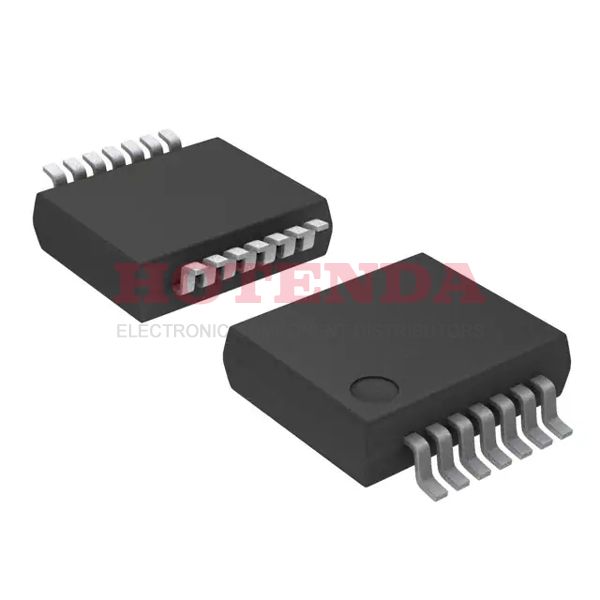

74LVC00ADB,118 Overview
As the part is packed in 14-SSOP (0.209, 5.30mm Width), international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the NAND Gate principle. Ensure the part's full functionality by setting the voltage to 1.2V~3.6V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 24mA 24mA is the output current's high and low states. 74LVC is its series number. Total terminations are 14. Users will benefit significantly from 4 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 74LVC00 will yield device variants. The part body receives 14 pins. Inputs for the part are set to 2. There are 4 circuits in this device. Part now bears a 50pF load capacitance. When 3.6V is reached, the maximum supply voltage (Vsup) is reached. Standby current is 40μA.
74LVC00ADB,118 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC00ADB,118 Applications
There are a lot of Nexperia USA Inc.
74LVC00ADB,118 Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
