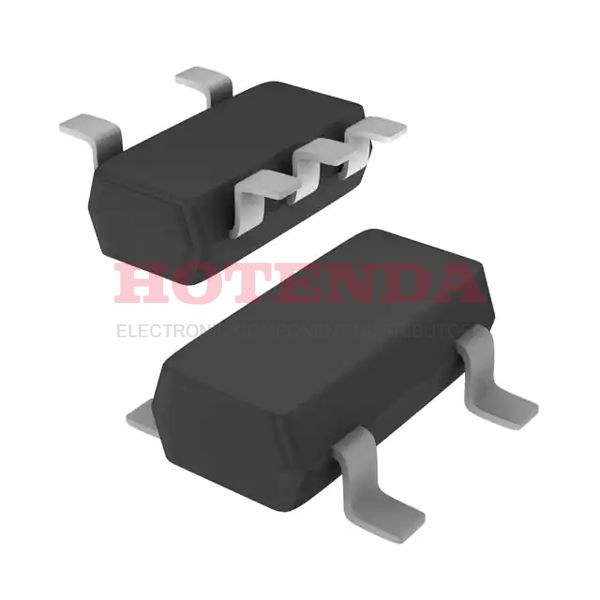

74HCT1G08GV,125 Overview
The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of AND Gate. The part must have a voltage of 4.5V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 2mA 2mA. This is part of the 74HCT series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the HCT family. Use 74HCT1G08 to search for device variants. There are 5 pins injected into the part body. There are 2 inputs on this part. A total of 1 circuits make up this device. Devices require a minimum voltage of 4.5V. As soon as Vsup reaches 5.5V, the maximal supply voltage (Vsup) is reached. In standby mode, the maximum current is 20μA.
74HCT1G08GV,125 Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
HCT Family
74HCT1G08GV,125 Applications
There are a lot of Nexperia USA Inc.
74HCT1G08GV,125 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
