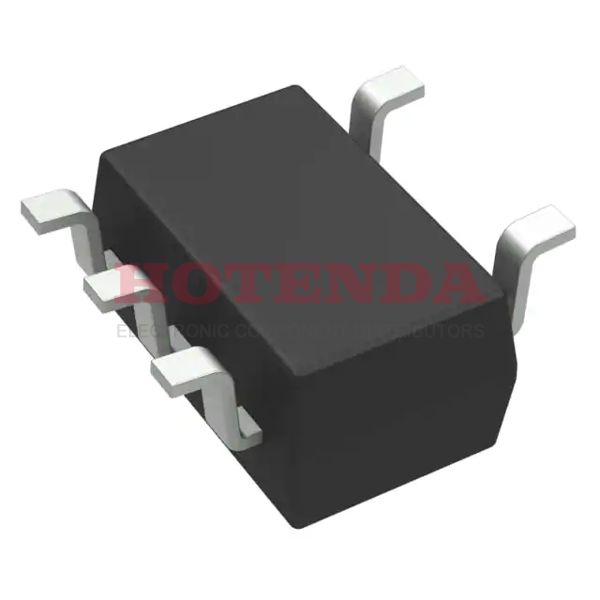

MC74VHC1G135DT1G Overview
The part comes in SOT-23-5 Thin, TSOT-23-5 packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A NAND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 2V~5.5V. Around -55°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is - 8mA. This item is from the 74VHC series. 74VHC1G135 can help you find device variants. Many applications require the use of this logic device with its Surface Mount mounting. The datasheets for the 5 pins explain the functions. Inputs for this part are 2. Parts in quiescent state carry 1μA current. The logic of 1 gates. The feature count is 0.
MC74VHC1G135DT1G Features
NAND Gate Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 1μA
1 Gates
MC74VHC1G135DT1G Applications
There are a lot of ON Semiconductor
MC74VHC1G135DT1G Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
