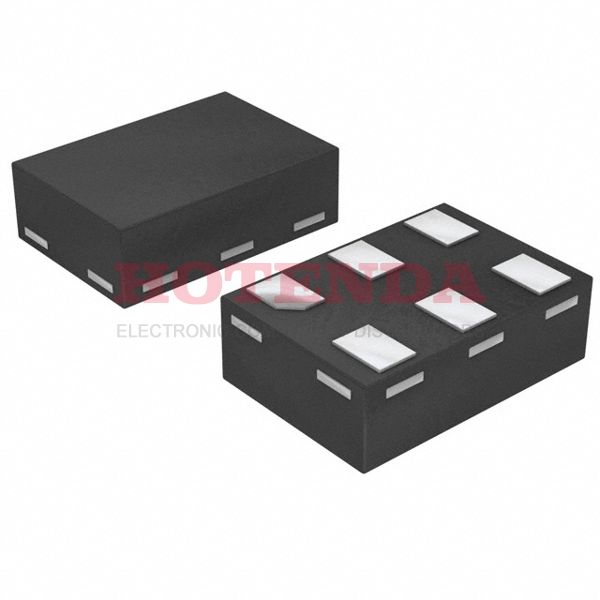

74AUP1G14FW5-7 Overview
Packed in 6-XDFN, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the Inverter logic principle. To ensure the part's full function, a voltage of 0.8V~3.6V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 4mA 4mA. It comes from the 74AUP series. There are 6 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the AUP/ULP/V product family. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 6 pins functions. In the quiescent state, the part has 500nA current flowing through it. This device is composed of 1 circuits. It requires a minimal voltage of 0.8V to supply the device. It features Schmitt Trigger.
74AUP1G14FW5-7 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
AUP/ULP/V Family
Quiescent Current: 500nA
74AUP1G14FW5-7 Applications
There are a lot of Diodes Incorporated
74AUP1G14FW5-7 Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
