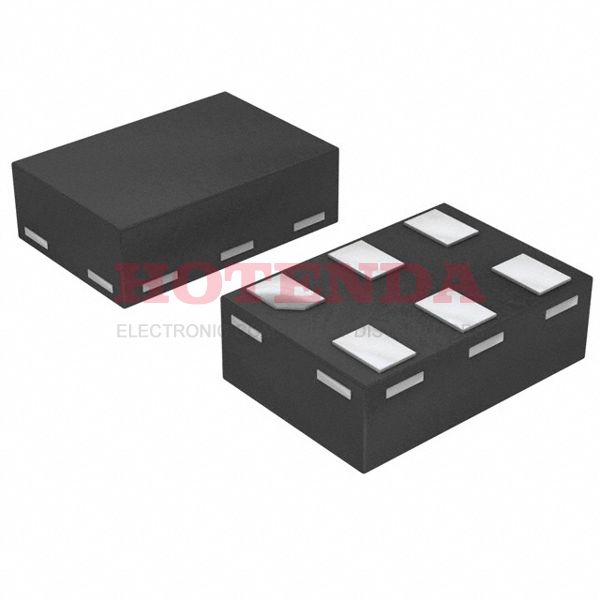

74LVC1G04FW5-7 Overview
This part is conveniently packaged in 6-XFDFN, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). Inverter logic governs its operation. Voltage 1.65V~5.5V ensures the part's full functionality. Operation at a temperature around -40°C~125°C TA. A Surface Mount mount is used for this part. Current output is 32mA 32mA in both the high and low states. The number 74LVC refers to it. In total, there have been 6 terminations. A significant improvement in the user experience can be achieved by the part since it has 1 functions. There is a chip in this package that is a part of LVC/LCX/Z. Search with 74LVC1G04 if you are looking for device variants. It is widely used in a variety of applications due to its Surface Mount mounting. To find out what the 6 pins do, please refer to the datasheets. Parts that are quiescent have 200μA current flowing through them. 1 circuits are used in this device. In this case, Vsup reaches its maximum value.
74LVC1G04FW5-7 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C TA
LVC/LCX/Z Family
Quiescent Current: 200μA
74LVC1G04FW5-7 Applications
There are a lot of Diodes Incorporated
74LVC1G04FW5-7 Gates and Inverters applications.
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
