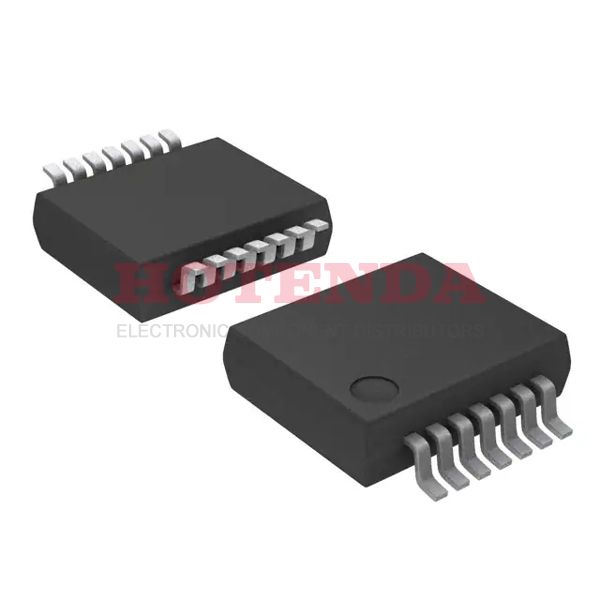

74HC14DB,112 Overview
As the part is packed in 14-SSOP (0.209, 5.30mm Width), international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tube. This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 2V~6V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 5.2mA 5.2mA is the output current's high and low states. 74HC is its series number. Total terminations are 14. Users will benefit significantly from 6 functions in this part. There is a chip like this in HC/UH. Trying searching with 74HC14 will yield device variants. The part body receives 14 pins. Inputs for the part are set to 1. There are 6 circuits in this device. Part now bears a 50pF load capacitance. The device must be supplied with a minimum voltage of 2V. When 6V is reached, the maximum supply voltage (Vsup) is reached. Standby current is 2μA. A feature of it is Schmitt Trigger.
74HC14DB,112 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
HC/UH Family
74HC14DB,112 Applications
There are a lot of Nexperia USA Inc.
74HC14DB,112 Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
