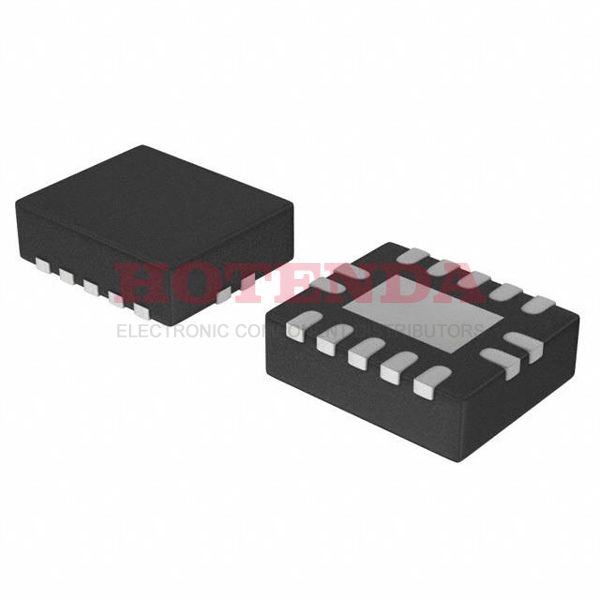

74AHC32BQ,115 Overview
As the part is packed in 14-VFQFN Exposed Pad, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the OR Gate principle. Ensure the part's full functionality by setting the voltage to 2V~5.5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 8mA 8mA is the output current's high and low states. 74AHC is its series number. Total terminations are 14. Users will benefit significantly from 4 functions in this part. There is a chip like this in AHC/VHC/H/U/V. Trying searching with 74AHC32 will yield device variants. The part body receives 14 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 14 pin functions are available upon request. Inputs for the part are set to 2. Quiescent parts carry 2μA current. The device must be supplied with a minimum voltage of 2V. This device includes 1 outputs. There is a specification for the operating voltage of the chip, 5VV, which is referred to as the supply voltage. Gates with a 4 logic.
74AHC32BQ,115 Features
OR Gate Logic Type
Operating Temperature: -40°C~125°C
AHC/VHC/H/U/V Family
Quiescent Current: 2μA
4 Gates
74AHC32BQ,115 Applications
There are a lot of Nexperia USA Inc.
74AHC32BQ,115 Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
