74AUP1G132GW-Q100H Overview

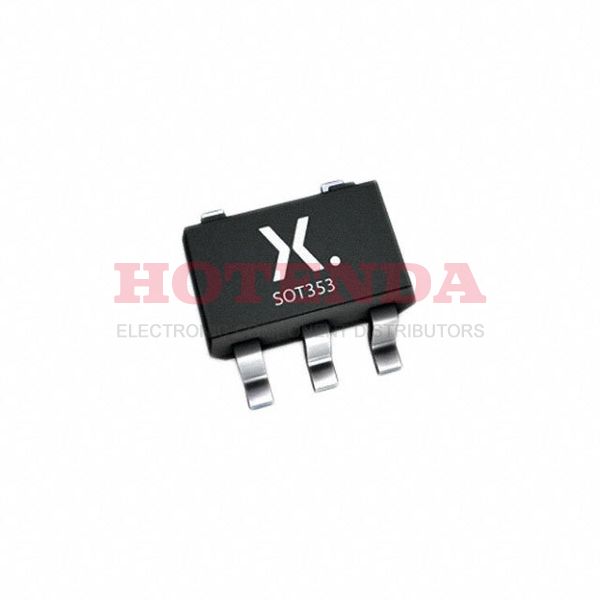

The part comes in 5-TSSOP, SC-70-5, SOT-353 packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A NAND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 0.8V~3.6V. Around -40°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 4mA 4mA. This item is from the Automotive, AEC-Q100, 74AUP series. Inputs for this part are 2. Circuits number 1 make up this device. Standing by mode draws 500nA watts of current. The feature count is 0.
74AUP1G132GW-Q100H Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
74AUP1G132GW-Q100H Applications
There are a lot of Nexperia USA Inc.
74AUP1G132GW-Q100H Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
