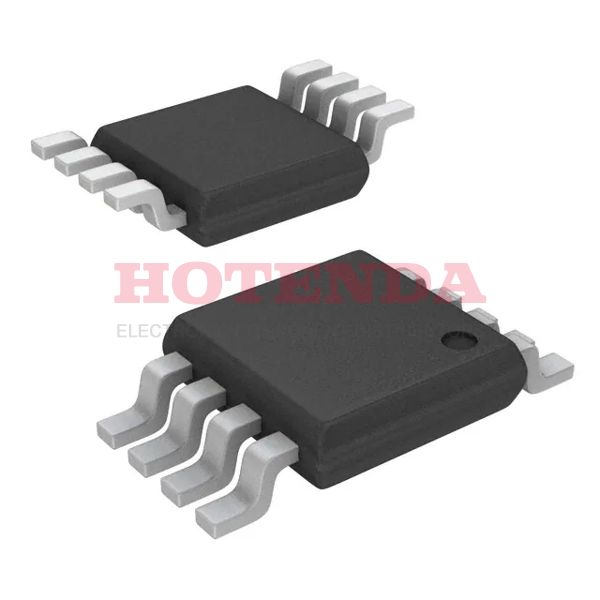

74AHCT3G14DP,125 Overview
The part can be shipped overseas conveniently because it is packaged in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width). In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of Inverter. The part must have a voltage of 4.5V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 8mA 8mA. This is part of the 74AHCT series. In total, there are 8 terminations. 3 functions in the part enhance the user experience significantly. The chip is part of the AHCT/VHCT/VT family. Use 74AHCT3G14 to search for device variants. There are 8 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 8 pins can be found in the datasheets. When the part is quiescent, 1μA current flows through it. A total of 3 circuits make up this device. It is specified that the operating supply voltage for the chip will be 5V volts. Schmitt Trigger is its feature.
74AHCT3G14DP,125 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
AHCT/VHCT/VT Family
Quiescent Current: 1μA
74AHCT3G14DP,125 Applications
There are a lot of Nexperia USA Inc.
74AHCT3G14DP,125 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
