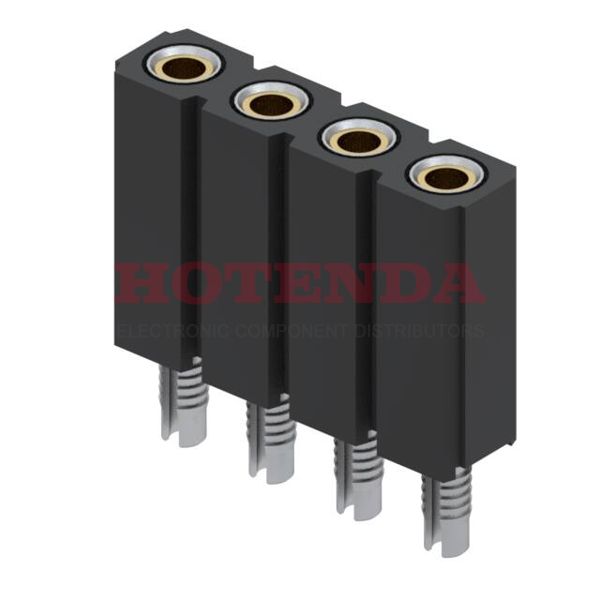

Name: 801-93-004-61-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 801-93-004-61-001000
Price: 1.47000 USD
Availability: InStock

new-10%

801-93-004-61-001000

Manufacturer part number:801-93-004-61-001000

Manufacturer:Mill-Max Manufacturing Corp.

Description:1 RowsReceptaclePress-Fit, SolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester4 PositionsFemale Socket

Case Package:SOT-23

Datasheet:801-93-004-61-001000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	801
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	4
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.5A
Insulation Height	0.276 7.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.104 2.64mm
Contact Finish - Post	Tin-Lead
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant

801-93-004-61-001000 Product Details

801-93-004-61-001000 Overview

Receptacle packaging is included.Through Hole is the type of mounting for the device.This product is packaged in a case marked Bulk.Product number 801 belongs to the 801 Series.Through Hole is the mounting point for the part.Devices operate at -55°C~125°C operating temperatures.
