Name: 316-43-109-41-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 316-43-109-41-001000
Price: 2.68000 USD
Availability: InStock

new-10%

316-43-109-41-001000

Manufacturer part number:316-43-109-41-001000

Manufacturer:Mill-Max Manufacturing Corp.

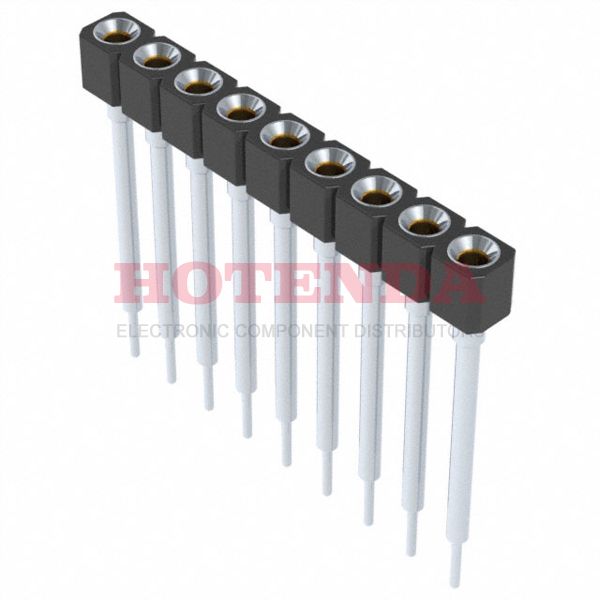

Description:1 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester 9 Positions Female Socket

Case Package:SOT-23

Datasheet:316-43-109-41-001000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SIP
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Housing Material	Polychlorinated
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	316
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Elevated Socket
Number of Positions	9
Number of Rows	1
Gender	Female
Additional Feature	SIP
Fastening Type	Push-Pull
Voltage - Rated DC	150V
Contact Finish - Mating	Gold
Contact Type	Female Socket
Orientation	Straight
Depth	2.54mm
Insulation Height	0.594 15.09mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Voltage - Rated AC	100V
Contact Length - Post	0.118 3.00mm
Number of Contacts	9
Contact Finish - Post	Tin
Housing Color	Black
Contact Resistance	10mOhm
Insulation Resistance	10GOhm
Max Voltage Rating (AC)	100V
Max Current Rating	3A
Max Voltage Rating (DC)	150V
Device Socket Type	IC SOCKET
Length	22.86mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

316-43-109-41-001000 Product Details

316-43-109-41-001000 Overview

This product is packaged in a Elevated Socket carton.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the 316 Series.In addition, there are other features, such as SIP, to mention just a few.Packages with the SIP contain a device.Mounting of the part is based on Through Hole.It runs at -55°C~125°C Operating Temperature.
