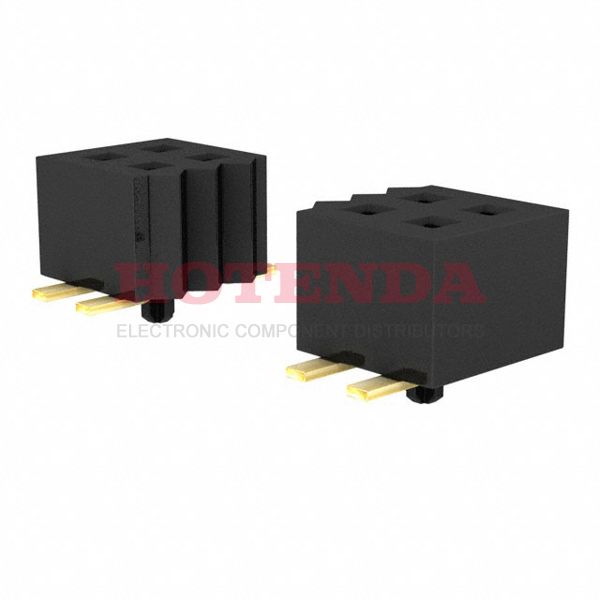

Name: CLP-105-02-G-D-A-K-TR
Brand: Samtec Inc.
SKU: CLP-105-02-G-D-A-K-TR
Price: 1.93000 USD
Availability: InStock

new-10%

CLP-105-02-G-D-A-K-TR

Manufacturer part number:CLP-105-02-G-D-A-K-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)10 PositionsFemale Socket

Case Package:SOT-23

Datasheet:CLP-105-02-G-D-A-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Board Mounting Option	PEG
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	CLP
JESD-609 Code	e4
Feature	Board Guide, Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	2
Gender	Female
Additional Feature	E.L.P., LOW PROFILE, TIGER CLAW
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	340V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.3A per Contact
Total Number of Contacts	10
Insulation Height	0.084 2.14mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Voltage - Rated AC	240V
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Depth	0.09 inch
Mating Contact Pitch	0.05 inch
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CLP-105-02-G-D-A-K-TR Product Details

CLP-105-02-G-D-A-K-TR Overview

The packaging is Receptacle.The device's mounting type is Surface Mount.An Tape & Reel (TR) case is utilized for packaging the product.Among the products in the CLP Series, it is one of the most popular.In addition, there are other features, such as E.L.P., LOW PROFILE, TIGER CLAW, to mention just a few.This feature renders it more powerful in a number of ways because of its Board Guide, Pick and Place feature.-55°C~125°C Operating Temperature is used by the device.
