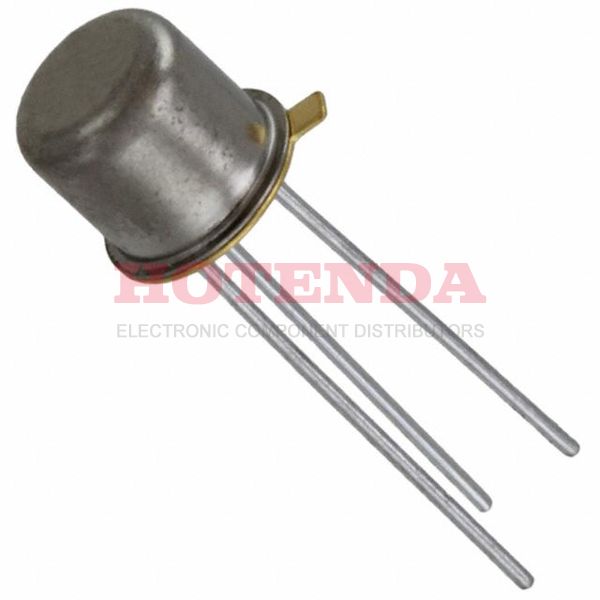

JAN2N2222AL Overview
DC current gain' is equal to the ratio of the collector current to the base current, something like Ic/Ib, and this device has 100 @ 150mA 10V DC current gain.Single BJT transistor means that Ic is at Single BJT transistors maximum value (saturated), so the vce saturation(Max) is equal to 1V @ 50mA, 500mA.Maximum collector currents can be below 800mA volts.
JAN2N2222AL Features
the DC current gain for this device is 100 @ 150mA 10V
the vce saturation(Max) is 1V @ 50mA, 500mA
JAN2N2222AL Applications
There are a lot of Microsemi Corporation JAN2N2222AL applications of single BJT transistors.
- Muting
- Inverter
- Interface
- Driver
